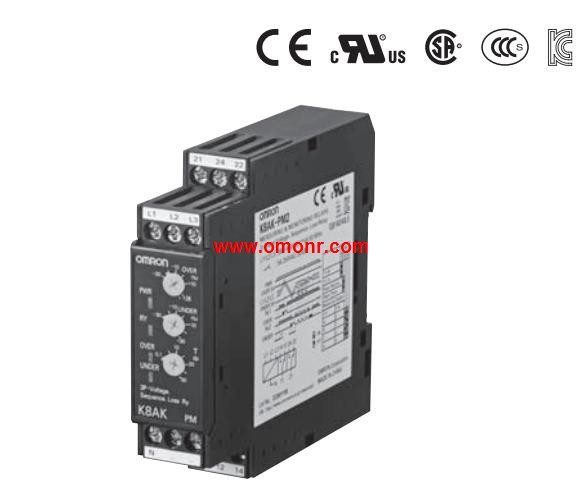

>> K8AK-PM2 | OMRON Three-phase Voltage and Phase-sequence Phase-loss Relay K8AK-PM2
K8AK-PM2 | OMRON Three-phase Voltage and Phase-sequence Phase-loss Relay K8AK-PM2
OMRON K8AK-PM2 Manual And Instructions
K8AK-PM2 datasheetPDF datasheet
OMRON K8AK-PM2 Product information and technical parameters：
Brand: OMRON
Name: Three-phase Voltage and Phase-sequence Phase-loss Relay
Model: K8AK-PM2
Rated input: 3-phase 3-wire mode, 3-phase 4-wire mode;
380, 400, 415, 480 VAC, 220, 230, 240, 277 VAC.
Ideal for Monitoring 3-phase Power.
Supplies for Industrial Facilities and Equipment.
Greater resistance to inverter noise.
Monitor overvoltages, undervoltages, phase sequence,
and phase loss for three-phase 3-wire or 4-wire power,
supplies with just one Unit.
Switch setting for 3-phase 3-wire or 3-phase 4-wire power supply.
Two SPDT output relays, 5 A at 250 VAC (resistive load).
Output overvoltages and undervoltages using separate relays.
World-wide power specifications supported by one Unit (switchable).
Output status can be monitored using LED indicator.
