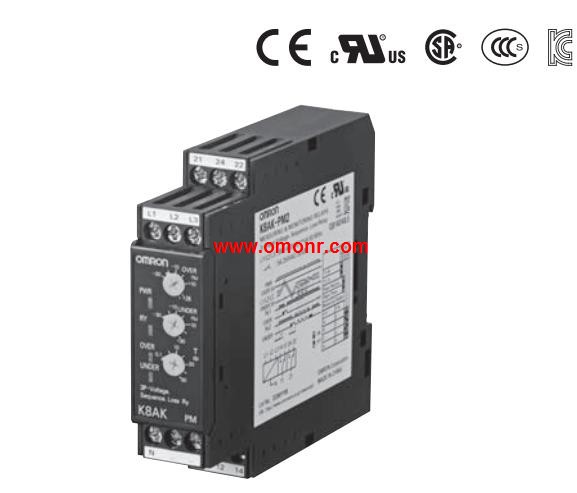

K8AK-PM1 | OMRON Three-phase Voltage and Phase-sequence Phase-loss Relay K8AK-PM1

OMRON K8AK-PM1 Manual And Instructions
K8AK-PM1 datasheetPDF datasheet

OMRON K8AK-PM1 Product information and technical parameters:
Brand: OMRON
Name: Three-phase Voltage and Phase-sequence Phase-loss Relay
Model: K8AK-PM1
Rated input: 3-phase 3-wire mode, 3-phase 4-wire mode;
200, 220, 230, 240 VAC, 115, 127, 133, 138 VAC.
Ideal for Monitoring 3-phase Power.
Supplies for Industrial Facilities and Equipment.
Greater resistance to inverter noise.
Monitor overvoltages, undervoltages, phase sequence,
and phase loss for three-phase 3-wire or 4-wire power,
supplies with just one Unit.
Switch setting for 3-phase 3-wire or 3-phase 4-wire power supply.
Two SPDT output relays, 5 A at 250 VAC (resistive load).
Output overvoltages and undervoltages using separate relays.
World-wide power specifications supported by one Unit (switchable).
Output status can be monitored using LED indicator.

No. of poles: 4.
Connection method: Soldering.
Suitable cable dia: 4 mm (4 to 5).
Core conductor size: 0.5 max.
Suitable sheath material: PVC, PE, PUR.
Angled Connectors.
Minimum order: 50.
Round Water-resistive Smartclick.
Connectors That Reduce Installation Work.
A newly developed lock mechanism that is compatible with round M12 connectors OMRON K8AK-PM1.
Simply insert the Connectors, then turn them approximately 1/8 of a turn to lock K8AK-PM1
A positive click indicates locking.
Features the same degree of protection (IP67) as M12 connectors.
A full line-up of models is planned.
Connectors with Cables are UL approved. No. of poles: 4.
Connection method: Screw-on.
Suitable cable dia: 7 mm (6 to 7) OMRON K8AK-PM1.
Core conductor size: 0.18 to 0.75 mm.
Suitable sheath material: PVC, PE, PUR.
Straight Connectors.
Minimum order: 50.
Round Water-resistive Smartclick.
Connectors That Reduce Installation Work.
A newly developed lock mechanism that is compatible with round M12 connectors.
Simply insert the Connectors, then turn them approximately 1/8 of a turn to lock.
A positive click indicates locking OMRON K8AK-PM1.
Features the same degree of protection (IP67) as M12 connectors.
A full line-up of models is planned.
Connectors with Cables are UL approved. Round socket.
Equipped with a wide variety of square and round sockets,
Surface connection and back connection.
With a finger touch protection type.
With the fixed bracket, PYF cross tab.
Add no screw series. Socket body.
Representative examples of applicable models.
Timer: H3Y series; H3YN series; H3Y (N) -4-B.
Pole number: 4.
Socket for MY relay, G2R-S relay.
Save hours of Push-InPlus terminal type to add product series.
Using Plus Push-In terminal, compared with the previous screw terminals,
Save wiring time (compared with the previous screw terminals, can shorten the wiring time of about 60%*).
Screw wwill not loose, to achieve maintenance free K8AK-PM1.
The insertion force is small, the drawing strength is big, and the wiring time is saved, and the high reliability is simultaneously considered.
When connecting multiple strands, the use of non - holding mechanism,
Insert a word screwdriver to keep it K8AK-PM1.
2 wires can be inserted in each terminal.
DIN guide rail installation, screw mounting common.


...More relevant models >>>>
