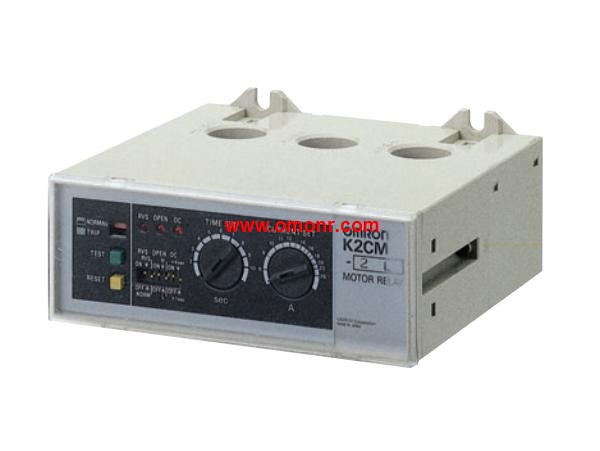

K2CM-2LS | OMRON Motor Protective Relay K2CM-2LS
OMRON K2CM-2LS Manual And Instructions
K2CM-2LS datasheetPDF datasheet
K2CM-2LS Communications Manual
OMRON K2CM-2LS Product information and technical parameters：
Brand: OMRON
Name: Motor Protective Relay
Model: K2CM-2LS
Time specification: Inverse type.
Current setting range: 2 to 8 A.
Operating voltage: 200/220/240 VAC.
Resetting method: Manual.
Solid-state Relay Enables Choice of Three.
Operating Functions (Overcurrent, Open,
phase, and Reverse-phase).
Protects 3-phase induction motors and their loads from damage.
Selection and combination of operating functions from overcur,
rent, open-phase, and reverse-phase.
Circuit and output relay operation can be checked by just operat,
ing the test button.
The set time value can be checked easily because operation time,
is indicated from the start of operation.
Space-saving, integrated construction.
Note: If the K2CM is used with an inverter, the operating conditions will,
depend on the load wiring length, inverter carrier frequency, basic,
frequency, and load conditions. Error will occur in the operating,
values of the overload elements. It is recommended to test operation,
before using the K2CM.
