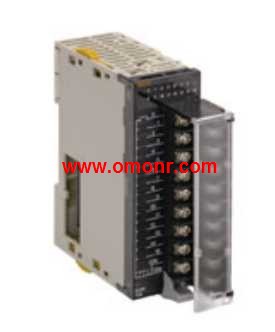

>> CJ1W-INT01 | OMRON Interrupt Input Units CJ1W-INT01
CJ1W-INT01 | OMRON Interrupt Input Units CJ1W-INT01
OMRON CJ1W-INT01 Manual And Instructions
CJ1W-INT01 datasheetPDF datasheet
CJ1W-INT01 HardwarePROGRAMMING MANUAL
OMRON CJ1W-INT01 Product information and technical parameters：
Brand: OMRON
Name: Interrupt Input Units
Model: CJ1W-INT01
Unit type: CJ1 Basic I/O Units.
Product name: Interrupt Input Unit.
Specifications: I/O points, 16 inputs;
Input voltage current, 24 VDC, 7mA;
Commons: 16 points, 1 common;
Input pulse widt conditions, ON time:
0.05 ms max. OFF time: 0.5 ms max;
Max. Units mountable per Unit, 2;
External connection, Removable terminal block.
No. of words allocated: 1 word.
Current consumption: 5V, 0.08A; 24V, --.
Standards: UC1, N, L, CE.
High-speed Starting of I/O InterruptTasks.
Use Up to Two Units for a Total of Up,
to 32 Interrupt Inputs.
Receive inputs to start I/O interrupt tasks.
When the Interrupt Input Unit receives an input,
the CPU Unit will interrupt execution of the,
cyclic tasks in the normal.
program and execute an I/O interrupt task.
