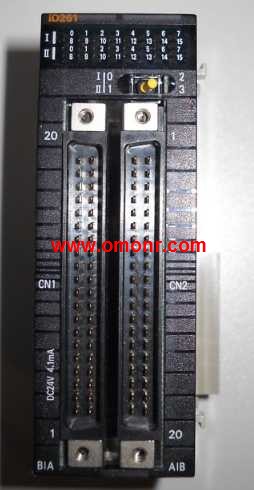

CJ1W-ID261 | OMRON CJ-series Input Units CJ1W-ID261

CJ1W-ID261 Introduce | CJ1W-ID261 Catalog / Manual / Instructions / Software download

OMRON CJ1W-ID261 Manual And Instructions
CJ1W-ID261 datasheetPDF datasheet
CJ1W-ID261 HardwarePROGRAMMING MANUAL

OMRON CJ1W-ID261 Product information and technical parameters：
Brand: OMRON
Name: CJ-series Input Units
Model: CJ1W-ID261
Unit type: CJ1 Basic I/O Units.
Product name: DC Input Units.
Specifications: I/O points, 64 inputs;
Input voltage and current: 24 VDC, 4.1 mA;
Commons, 16 points, 1 common; External connection,
Fujitsu connector; No. of words allocated, 4 word.
Current consumption: 5V, 0.09A; 24V, --.
Standards: UC1, N, L, CE.
A Wide Range of Basic Input,
Units for High Speed Input and,
Different Applications.
Receive ON/OFF signals from external,
devices into the PLC System to update,
I/O memory in the CPU Unit.
New high-speed input models CJ1W-ID212 and,
CJ1W-ID233 are now available. These units can,
help to increase system throughput.

CompoWay/F adapter for communications with Omron Process and Temperature Controllers and Panel Meters.Unit type: CJ1 CPU Bus Units.
Product Name: Serial Communications nits.
Specifications:Communications Interface,
1 RS-232C port and 1 RS-422A/485 port;
Communications functions,
The following functions can be,
selected for each port:
Protocol macro Host Link,
NT Links (1:N mode)Serial Gateway,
No-protocol Modbus-RTU Slave OMRON CJ1W-ID261 CJ1W-ID261
No. of unit numbers allocated: 1.
Current consumption : 5V, 0.38A; 24V,--.
Standards: UC1, N, L, CE.
The Serial Communications Units That Enable,
High-speed Connections with External Devices.
Each Serial Communications Unit provides two,
serial communications ports: RS-232C and,
RS-422A/485, and the serial communications,
mode can be set separately for each port from,
Protocol Macro, Host Link, NT Link,
Serial Gateway, and No-protocol OMRON CJ1W-ID261. Product name: CJ2M CPU Units.
Specifications: I/O capacity/Mountable Units(Expansion Racks),
2, 560 points/40 Units(3 ExpansionRacks max. );Programcapacity,
20K steps;Data memorycapacity, 64K words,
(DM: 32K words, EM: 32K words ×1 bank);
LD nstruction execution time, 0 OMRON CJ1W-ID261. 04 μs;
EtherNet/IP function: --;
Option board slot: --.
Current consumption (A): 5V, 0. 7(See note. );24V, --.
Standards: UC1, N, L, CE.
CJ2M for basic machine automation.
The CJ2M Series is ideal for packaging and general.
machine automation needs. Connectivity is assured.
thanks to the built-in USB port and the choice of.
Ethernet and RS-232C/422/485 interfaces on the CPU. Unit classification: CJ1 Special I/O Units.
Product name: Position Control Units,
(High Speed type).
Specifications; Control method/Control,
output interface:Pulse-train line-driver,
output with Pulse Counter Function;
Number of control axes : 2 axes.
No. of unit numbers allocated: 2.
Current consumption: 5V, 0.27A; 24V, --.
Standards: UC1, CE.
Motion Control Capabilities with Unit,
Synchhronization and Even Higher Speed CJ1W-ID261.
Models are available with 2 or 4 axes,
and open-collector or line-driver outputs.
The CJ1W-NC214/NC414 have open-collector outputs,
and the CJ1W-NC234/NC434 have line-driver outputs.
Control 2 or 4 Axes High-speed, high-resolution,
position control is possible for servomotors ,
and pulse motors, and even linear motors,
and direct drive motors CJ1W-ID261.
