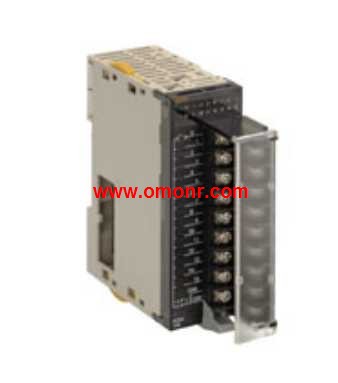

>> CJ1W-IDP01 | OMRON Quick-response Input Units CJ1W-IDP01
CJ1W-IDP01 | OMRON Quick-response Input Units CJ1W-IDP01
OMRON CJ1W-IDP01 Manual And Instructions
CJ1W-IDP01 datasheetPDF datasheet
CJ1W-IDP01 HardwarePROGRAMMING MANUAL
OMRON CJ1W-IDP01 Product information and technical parameters：
Brand: OMRON
Name: Quick-response Input Units
Model: CJ1W-IDP01
Unit type: CJ1 Basic I/O Units.
Product name: Quick-response Input Unit.
Specifications: I/O points, 16 inputs;
Input voltage current, 24VDC, 7mA;
Commons: 16 points, 1 common;
Input pulse widt conditions, ON time:
0.05 ms max. OFF time: 0.5 ms max;
Max. Units mountable per Unit, 2;
External connection, Removable terminal block.
No. of words allocated: 1 word.
Current consumption: 5V, 0.08A; 24V, --.
Standards: UC1, N, L, CE.
Capture Input Signals Shorter,
Than the Cycle Time.
This Input Unit can read pulse inputs that,
are shorter than the cycle time of the CPU Unit.
