>> C200HX-CPU34-E | OMRON CPU Unit C200HX-CPU34-E

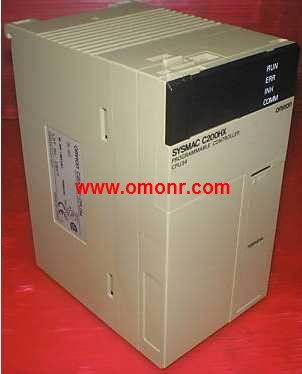

C200HX-CPU34-E | OMRON CPU Unit C200HX-CPU34-E
OMRON C200HX-CPU34-E Manual And Instructions
C200HX-CPU34-E HOST CONNECTION MANUAL
OMRON C200HX-CPU34-E Product information and technical parameters：
Brand: OMRON
Name: CPU Unit
Model: C200HX-CPU34-E
UM: 31.2K words.
DM: 6K words.
EM: 6Kx3 banks(18K) words.
Instruction processing time (basic instructions): 0.1 µ.s min.
No. of I/O points: 880 points.
Max. no.of con-necting Expansion I/O Racks: 2 Racks.
Max. no. of connecting High-density I/O Units(i.e., Group-2): Unavailable.
Max. no. of con-necting Special I/O Units: 10.
RS-232C: NO.
