>> C200HG-CPU53-ZE | OMRON CPU Unit C200HG-CPU53-ZE

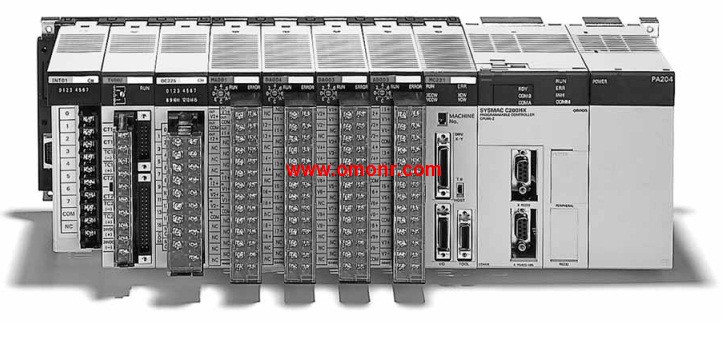

C200HG-CPU53-ZE | OMRON CPU Unit C200HG-CPU53-ZE
OMRON C200HG-CPU53-ZE Manual And Instructions
C200HG-CPU53-ZE OPERATION MANUAL
OMRON C200HG-CPU53-ZE Product information and technical parameters：
Brand: OMRON
Name: CPU Unit
Model: C200HG-CPU53-ZE
UM: 15.2K words.
DM: 6K words.
EM: 6K words.
Instruction processing time (basic instructions): 0.15 µ.s min.
No. of I/O points: 1, 184 points.
Max. no.of con-necting Expansion I/O Racks: 3 Racks.
Max. no. of connecting High-density I/O Units(i.e., Group-2): Unavailable.
Max. no. of con-necting Special I/O Units: 10.
RS-232C: NO.
