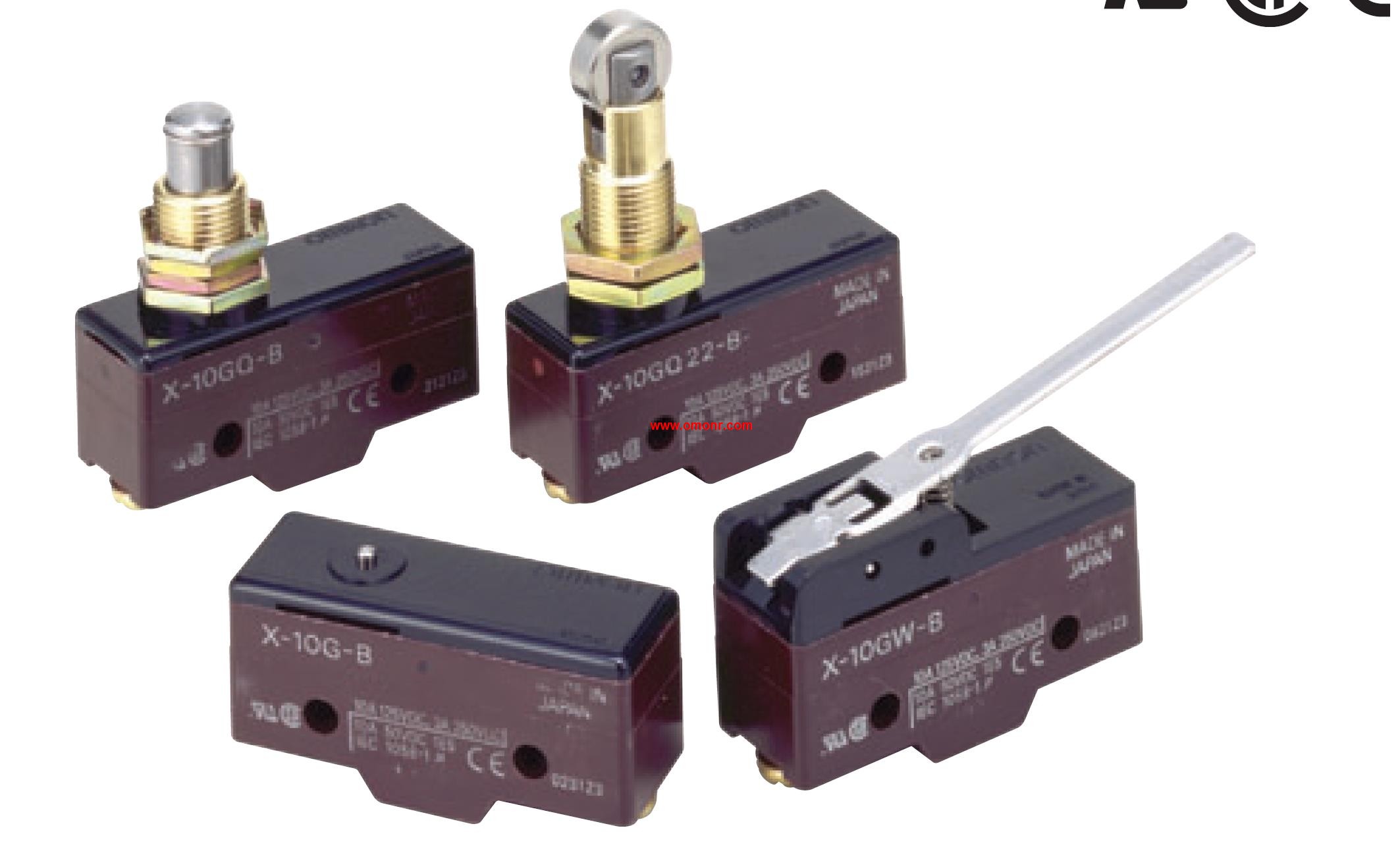

OMRON X-10GW22 Product information and technical parameters：
Brand: OMRON
Name: General-purpose Basic Switch
Model: X-10GW22
Terminal: Solder terminal.
Actuator: Short hinge roller lever.
Direct Current Switch with.
Built-in Magnetic Blowout.
Incorporates a small permanent magnet in the contact.
mechanism to deflect the arc to effectively extinguish it.
Same shape and mounting procedures as the Z Basic Switches.
...More relevant models >>>>
