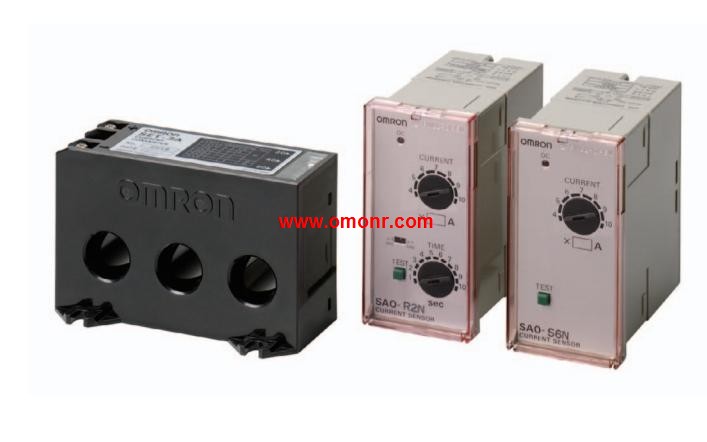

SAO-SU7N | OMRON Current Sensor SAO-SU7N
OMRON SAO-SU7N Manual And Instructions
SAO-SU7N datasheetPDF datasheet
SAO-SU7N Installation and Operating Manual
OMRON SAO-SU7N Product information and technical parameters：
Brand: OMRON
Name: Current Sensor
Model: SAO-SU7N
Terminal/mounting: Plug-in/DIN rail via socket.
Control voltage: 100/110 VDC.
Under current detection: Instantaneous type.
Solid-state, Plug-in Current Sensor.
Applicable to motor overcurrent protection and 3-phase AC current detection.
Inverse-type, start-up lock type, and instantaneous type over,
current sensors available.
Instantaneous type under current sensor available.
Plug-in design simplifies installation, removal, and wiring.
DIN sized (48 mm x 96 mm).
