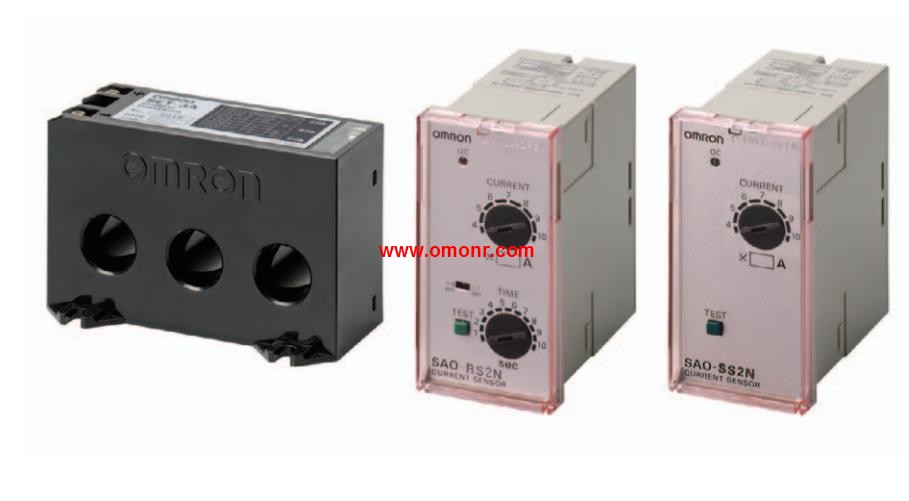

SAO-RS2N | OMRON Current sensor (Dan Xiangyong) SAO-RS2N
OMRON SAO-RS2N Manual And Instructions
SAO-RS2N Installation and Operating Manual
OMRON SAO-RS2N Product information and technical parameters：
Brand: OMRON
Name: Current sensor (Dan Xiangyong)
Model: SAO-RS2N
Appearance: insert type.
Control supply voltage: AC200/220/240V.
Action elements: overload detection.
Action characteristic: anti time limit action type.
Especially suitable for single phase motor over current protection.
Can be used for motor overload protection, common single-phase circuit of the AC current detection.
A variety of models, such as anti time limit characteristics, lock time, instantaneous action, etc., are provided,
The product is rich in variety, and can be effectively protected, detected and controlled according to the actual situation.
When the current is large, the input resistance of the CT or the relay part is not needed, and the use is simple.
Because it is a plug-in, installation, disassembly, wiring and other operations are very simple.
