>> K8DS-PM2 | OMRON Three-phase Voltage and Phase-sequence Phase-loss Relay K8DS-PM2

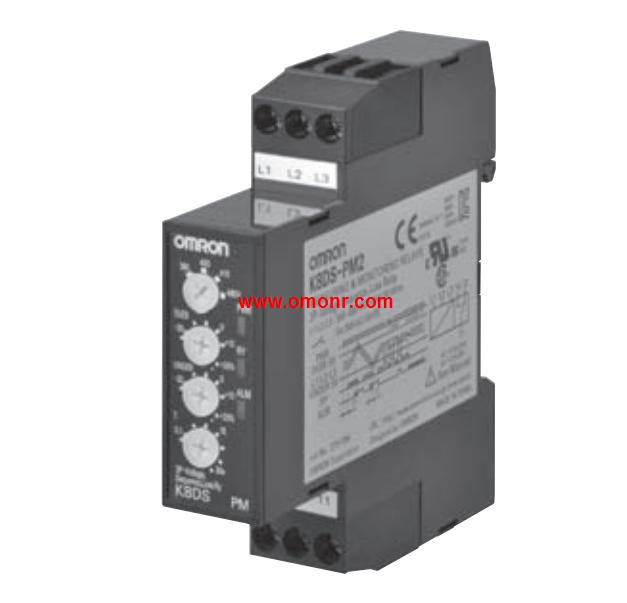

K8DS-PM2 | OMRON Three-phase Voltage and Phase-sequence Phase-loss Relay K8DS-PM2
OMRON K8DS-PM2 Manual And Instructions
K8DS-PM2 datasheetPDF datasheet
OMRON K8DS-PM2 Product information and technical parameters：
Brand: OMRON
Name: Three-phase Voltage and Phase-sequence Phase-loss Relay
Model: K8DS-PM2
Rated input voltage: 3-phase 3-wire mode, 380, 400, 415, or 480 VAC.
Ideal for Monitoring 3-phase Power Supplies,
for Industrial Facilities and Equipment.
Greater resistance to inverter noise.
Monitor undervoltages, overvoltages, phase sequence, and phase loss,
in three-phase three-wire circuits with one unit.
One SPDT output relay, 5 A at 250 VAC (resistive load).
World-wide power specifications supported by one unit.
(Set with a rotary switch.).
Relay status can be monitored using LED indicator.
