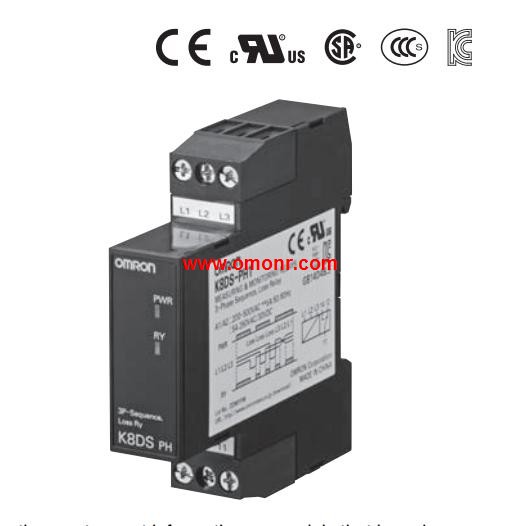

K8DS-PH1 | OMRON Phase-sequence Phase-loss Relay K8DS-PH1
OMRON K8DS-PH1 Manual And Instructions
K8DS-PH1 datasheetPDF datasheet
OMRON K8DS-PH1 Product information and technical parameters：
Brand: OMRON
Name: Phase-sequence Phase-loss Relay
Model: K8DS-PH1
Function: Phase sequence and phase loss monitoring.
Rated input voltage: 3-phase, 3-wire 200 to 480 VAC.
Relay output: SPDT × 1.
Three-phase Phase-sequence Phase-loss.
Relay Using Voltage Detection Method.
Lineup includes a 17.5-mm slim, compact model.
Greater resistance to inverter noise.
Distinguishes between correct phases, phase sequence, and phase,
loss when power is turned ON.
Supports phase loss detection when the motor is operating.
Output status can be monitored using LED indicator.
Ideal to prevent reverse operation of motors.
