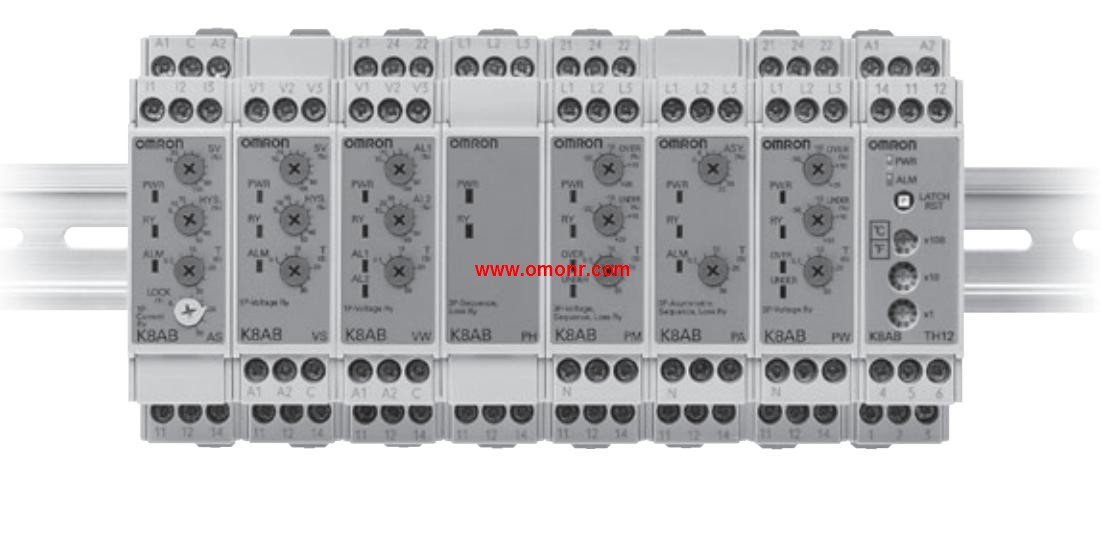

K8AB-PM2 | OMRON Three-phase Phase-sequence Phase-loss Relay K8AB-PM2
OMRON K8AB-PM2 Manual And Instructions
K8AB-PM2 datasheetPDF datasheet
K8AB-PM2 User's Manual
OMRON K8AB-PM2 Product information and technical parameters：
Brand: OMRON
Name: Three-phase Phase-sequence Phase-loss Relay
Model: K8AB-PM2
Rated input (See note 2.): 3-phase 3-wire mode, 3-phase 4-wire mode;
380, 400, 415, 480 VAC, 220, 230, 240, 277 VAC.
Ideal for monitoring 3-phase power supplies.
for industrial facilities and equipment.
Monitor overvoltages, undervoltages, phase sequence, and,
phase loss for three-phase 3-wire or 4-wire power supplies with,
just one Unit.
Switch setting for 3-phase 3-wire or 3-phase 4-wire power,
supply.
Two SPDT output relays, 6 A at 250 VAC (resistive load).
Output overvoltages and undervoltages using separate relays.
World-wide power specifications supported by one Unit,
(switchable).
Output status can be monitored using LED indicator.
...More relevant models >>>>
