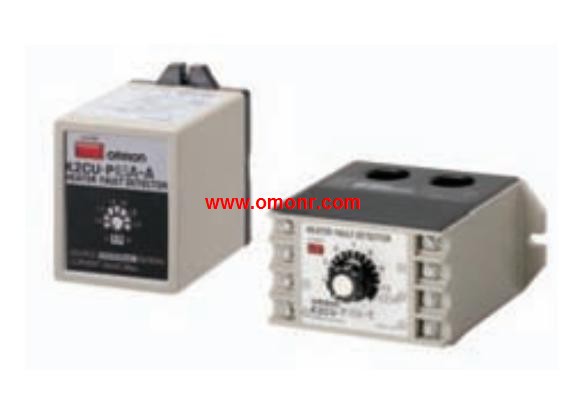

>> K2CU-F80A-DGS | OMRON Heater Element Burnout Detector K2CU-F80A-DGS
K2CU-F80A-DGS | OMRON Heater Element Burnout Detector K2CU-F80A-DGS
OMRON K2CU-F80A-DGS Manual And Instructions
K2CU-F80A-DGS datasheetPDF datasheet
OMRON K2CU-F80A-DGS Product information and technical parameters：
Brand: OMRON
Name: Heater Element Burnout Detector
Model: K2CU-F80A-DGS
Control supply voltage: 110 VAC; With voltage fluctuation compensation.
Operating current: 32 to 80 A.
Accurate Detection of Heater Element.
Burnout Regardless of Heater Capacities.
Accurately detects a burned heater element or elements incor,
porated by a molding machine or packing machine and outputs,
an alarm signal.
Precisely singles out the burned element even if one heater el,
ement among several heater elements has been burned out.
Applicable to small- to large-capacity heater elements.
All K2CU-F large-capacity, built-in current transformer models,
work with both single-phase and three-phase heaters.
Voltage fluctuation compensation function eliminates false,
alarms due to variations in the supply voltage.
