>> G9B-12 | OMRON Stepping Relay Unit G9B-12

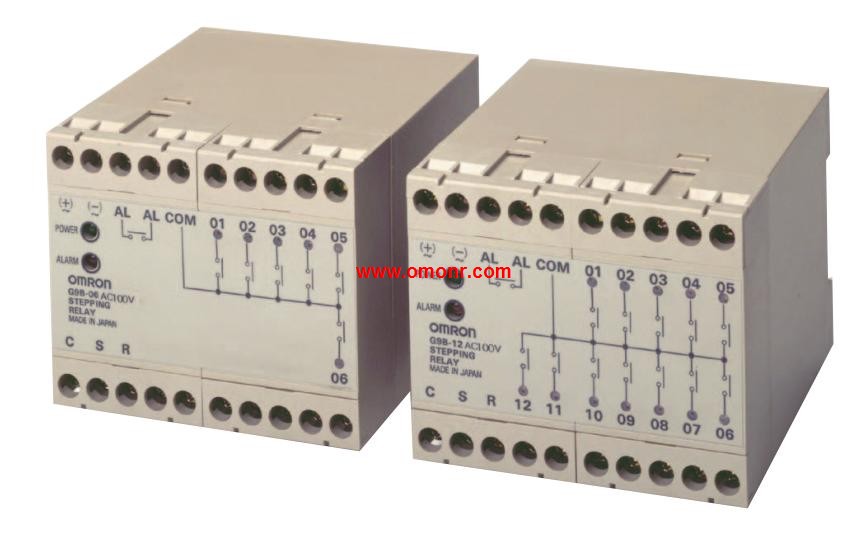

G9B-12 | OMRON Stepping Relay Unit G9B-12
OMRON G9B-12 Manual And Instructions
G9B-12 datasheetPDF datasheet
OMRON G9B-12 Product information and technical parameters：
Brand: OMRON
Name: Stepping Relay Unit
Model: G9B-12
No. of steps: 12.
Rated voltage: 24 VDC, 100 VAC, 200 VAC.
Ideal for Controlling Pumps and Production.
Lines with Six or Twelve Stepping Circuits.
Built-in relays switch 2 A at 250 VAC or 30 VDC.
Initialization of stepping with reset input.
Uses memory that stores setting status for 10 days without.
power. All internal contacts are released when no power is supplied.
Detects an internal element malfunction caused by external.
noise, indicates the malfunction with an alarm indicator, and,
turns the relay alarm output ON. (An internal relay malfunction,
or internal relay contact weld cannot be detected.).
With safety-design terminals which prevent electric shock accidents.
With easy-to-see indicators which display the stepping status.
...More relevant models >>>>
G9B-12 datasheetPDF datasheet
OMRON G9B-12 Product information and technical parameters：
Brand: OMRON
Name: Stepping Relay Unit
Model: G9B-12
No. of steps: 12.
Rated voltage: 24 VDC, 100 VAC, 200 VAC.
Ideal for Controlling Pumps and Production.
Lines with Six or Twelve Stepping Circuits.
Built-in relays switch 2 A at 250 VAC or 30 VDC.
Initialization of stepping with reset input.
Uses memory that stores setting status for 10 days without.
power. All internal contacts are released when no power is supplied.
Detects an internal element malfunction caused by external.
noise, indicates the malfunction with an alarm indicator, and,
turns the relay alarm output ON. (An internal relay malfunction,
or internal relay contact weld cannot be detected.).
With safety-design terminals which prevent electric shock accidents.
With easy-to-see indicators which display the stepping status.
Type: DC-switching.
Contact form: 3PDT.
Open structure: Screw terminals.
Mechanically Latching Relays Based on the.
MM Power Relay.
Low power consumption due to mechanical latch for economic operation.
Relays with mixed coil specifications can be produced,
(e.g., AC setcoil and DC reset coil) OMRON G9B-12.
Operational response fast enough to enable pulse signal power applications.
Ambient operating temperature: –10°C to 55°C G9B-12 Classification: Standard models.
Rated voltage: Standard products, 100/110 or 200/220 VAC, 12 or 24 VDC;
Made-to-order items, 12, 24, 100/120, or 200/240 VAC, 48 or 100/110 VDC.
New Latching Levers for Circuit Checking.
Added to Our Best-selling.
MY General-purpose Relays OMRON G9B-12.
