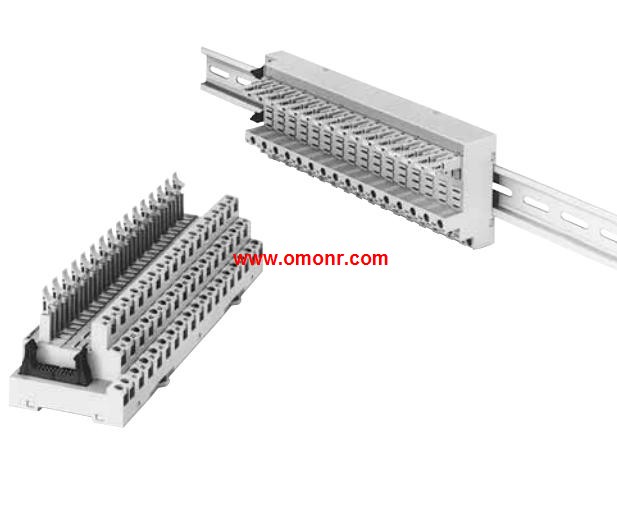

G70D-VSOC16 | OMRON Relay terminal G70D-VSOC16
OMRON G70D-VSOC16 Manual And Instructions
G70D-VSOC16 user's manual
G70D-VSOC16 INSTRUCTION MANUAL
OMRON G70D-VSOC16 Product information and technical parameters：
Brand: OMRON
Name: Relay terminal
Model: G70D-VSOC16
Category: relay output.
Points: 16 points (1a * 16).
Public connector side treatment: NPN (corresponding to the source of public).
Rated voltage: DC24V.
Pay attention to the use of convenience and space saving,
Relay terminal for 16 point output.
The terminal block is a long and thin type with a width of 135 * Deep 40mm.
It can be easily connected to the common end with the independent contact and short circuit chip.
Terminal units for power supply wiring processing can be extended.
M3.5 can be used with the Y fork type of the compression terminal (terminal width 6.2mm).
Can not use the tool to remove the relay. Relay replacement operation is simple.
Equipped with relay type and power FET MOS relay mounted type.
With action indication LED.
DIN guide rail installation, screw mounting common.
