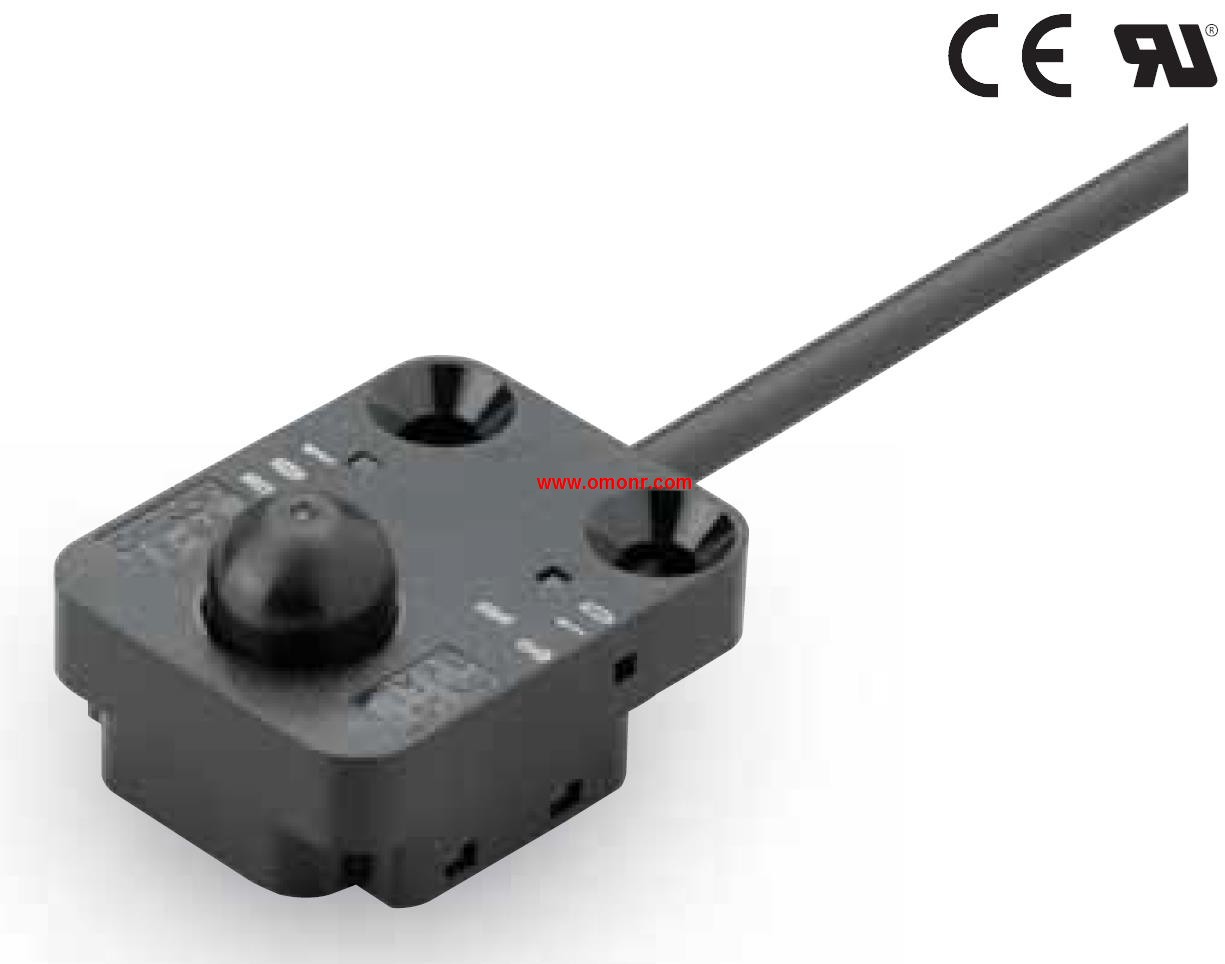

EE-SA801A-R 1M | OMRON Pushbutton-type Photomicrosensor EE-SA801A-R 1M
OMRON EE-SA801A-R 1M Manual And Instructions
EE-SA801A-R 1M datasheetPDF datasheet
OMRON EE-SA801A-R 1M Product information and technical parameters：
Brand: OMRON
Name: Pushbutton-type Photomicrosensor
Model: EE-SA801A-R 1M
Sensing distance: (See note 2.)0 to 3.5 mm(pressed position) (See note 1.).
Sensing method: Pushbutton.
Operation mode: ON with no load.
Cable length: 1 m (robot cable).
Model: NPN output .
Using a pushbutton enables,
accurately detecting difficult-to-detec objects.
Conforms to standards for semiconductor FOUP cassettes to ena,
accurately detecting FOUP cassettes without being affected by the,
material, color, or reflectance of the bottoms of the cassettes.
Thin design enables mounting in a wider range of applications, e.g.,
on transfer arms.
Increased visibility with 4-direction indicator.
Optical detection of actuator operation provides a long life,
(mechanical life: 5 million operations min.).
Models available with PNP or NPN output.
Models are available with very flexible robot cable.
...More relevant models >>>>
