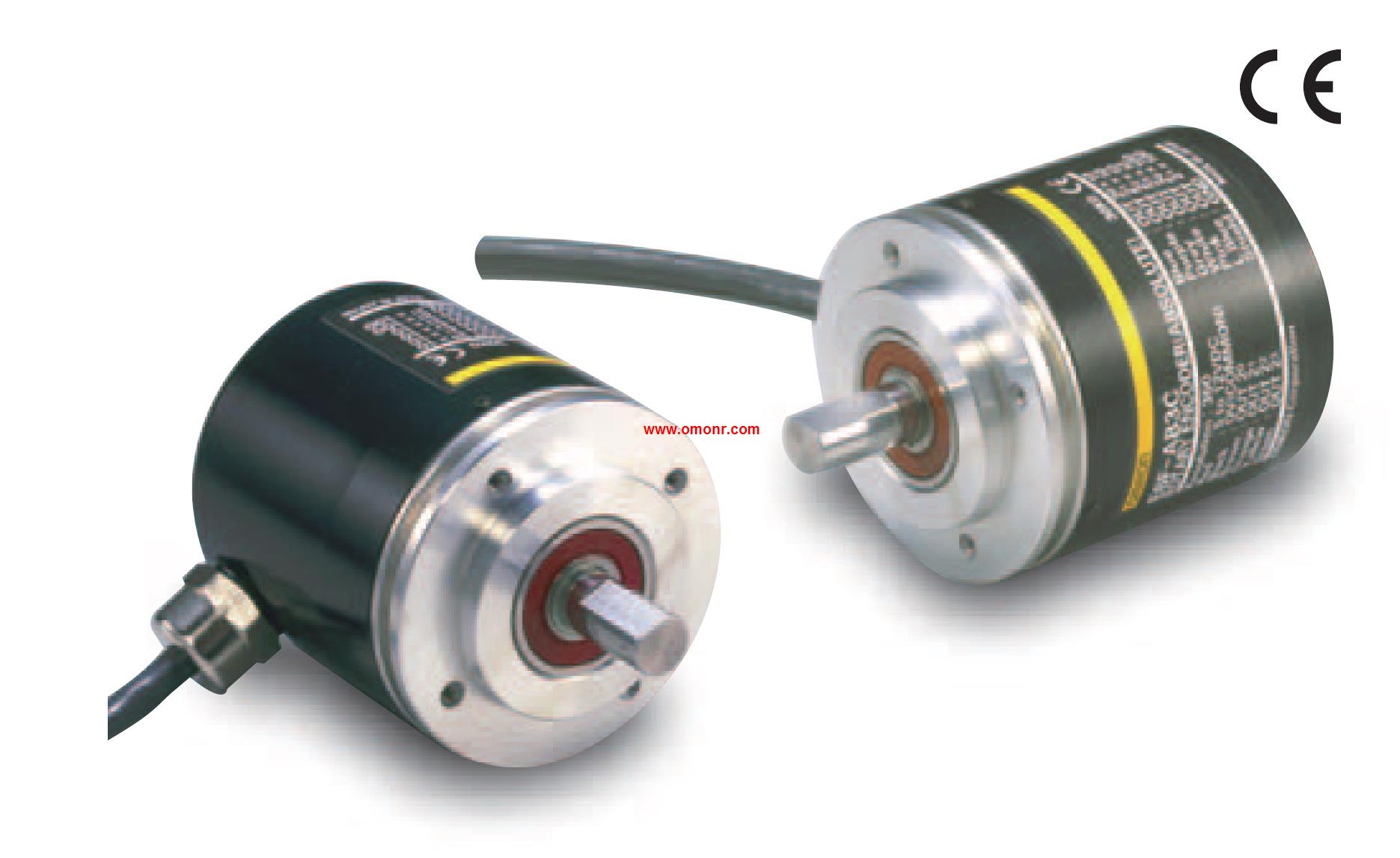

>> E6F-AG5B | OMRON Absolute 60-mm-dia. Rotary Encoder E6F-AG5B
E6F-AG5B | OMRON Absolute 60-mm-dia. Rotary Encoder E6F-AG5B
OMRON E6F-AG5B Manual And Instructions
E6F-AG5B datasheetPDF datasheet
E6F-AG5B INSTRUCTION sheet
OMRON E6F-AG5B Product information and technical parameters：
Brand: OMRON
Name: Absolute 60-mm-dia. Rotary Encoder
Model: E6F-AG5B
Power supply voltage: 12 to 24 VDC.
Output configuration: PNP open collector.
Output code: Gray code.
Resolution (divisions): 256, 360, 720, 1,024.
Connection method: Pre-wired Model.
Rugged Rotary Encoder.
Absolute model.
External diameter of 60 mm.
Resolution of up to 1,024 (10-bit).
IP65 oil-proof protection.
Strong shaft.
Radial: 120 N, Thrust: 50 N.
