>> E6C3-AN5C | OMRON Slim Encoder with Diameter of 50 mm E6C3-AN5C
E6C3-AN5C | OMRON Slim Encoder with Diameter of 50 mm E6C3-AN5C
OMRON E6C3-AN5C Manual And Instructions
E6C3-AN5C datasheetPDF datasheet
E6C3-AN5C INSTRUCTION sheet
OMRON E6C3-AN5C Product information and technical parameters：
Brand: OMRON

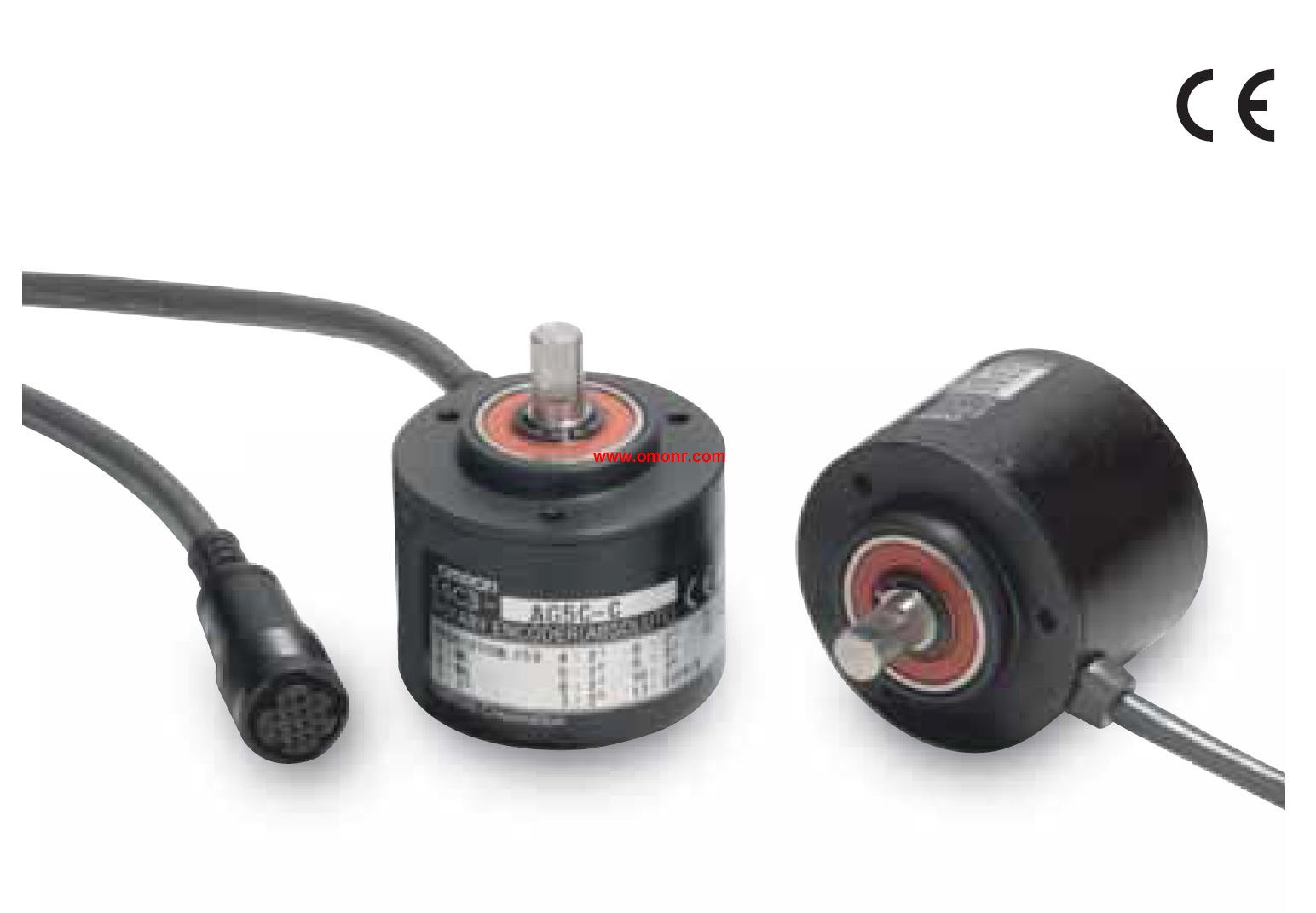

Name: Slim Encoder with Diameter of 50 mm
Model: E6C3-AN5C
Power supply voltage: 12 to 24 VDC.
Output configuration: Open-collector output (NPN).
Output code: Binary.
Resolution (divisions): 32, 40.
Connection method: Pre-wired Model (1 m).
Rugged Rotary Encoder.
Absolute model.
External diameter of 50 mm.
Resolution of up to 1,024 (10-bit).
IP65 (improved oil-proof protection with sealed bearings).
Optimum angle control possible in combination with PLC or,
Cam Positioner.
