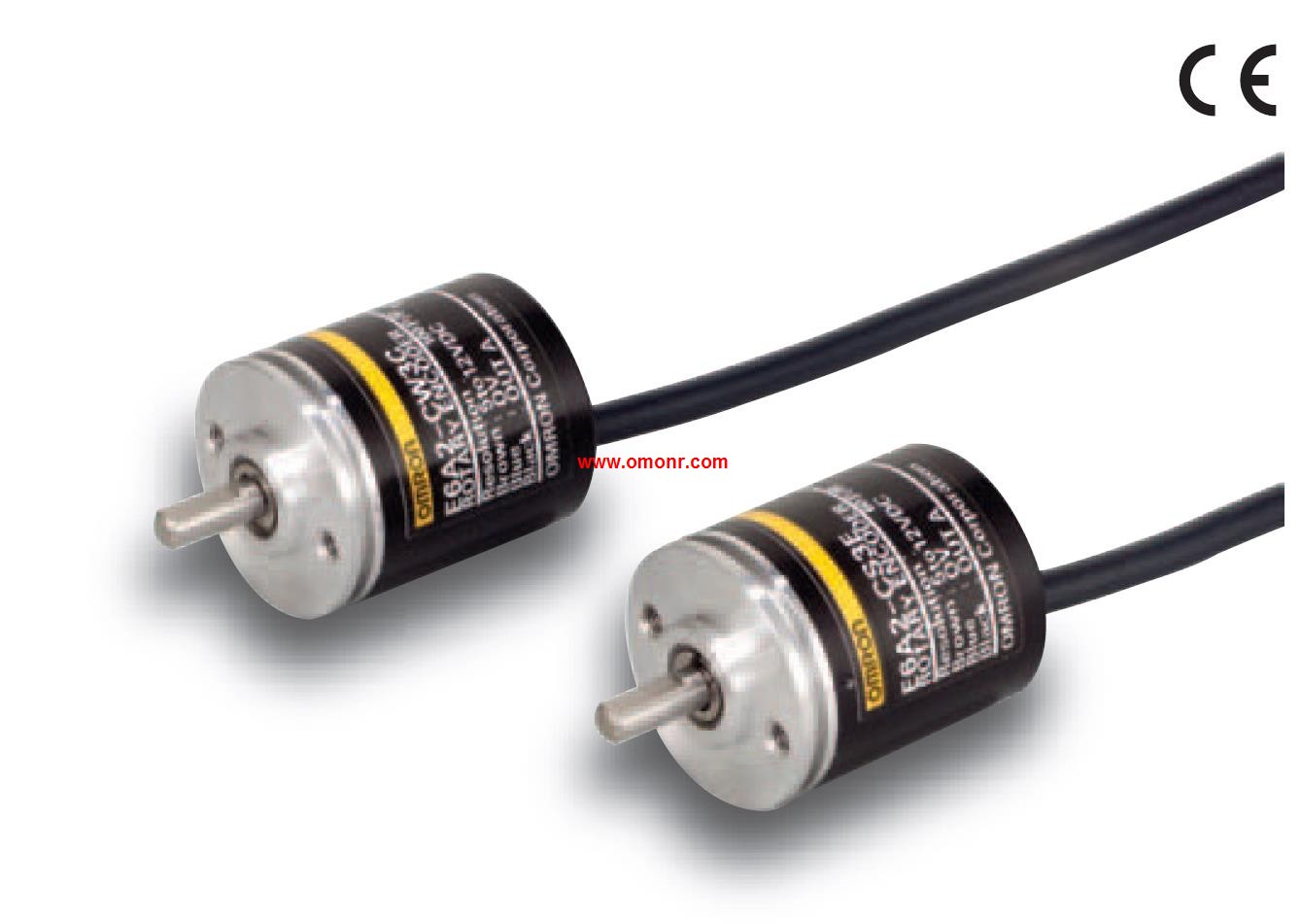

>> E6A2-CWZ3C | OMRON Incremental 25-mm-dia. Rotary Encoder E6A2-CWZ3C
E6A2-CWZ3C | OMRON Incremental 25-mm-dia. Rotary Encoder E6A2-CWZ3C
OMRON E6A2-CWZ3C Manual And Instructions
E6A2-CWZ3C datasheetPDF datasheet
E6A2-CWZ3C INSTRUCTION sheet
OMRON E6A2-CWZ3C Product information and technical parameters：
Brand: OMRON
Name: Incremental 25-mm-dia. Rotary Encoder
Model: E6A2-CWZ3C
Power supply voltage: 5 to 12 VDC.
Output configuration: Open-collector output (NPN output).
Output phases: Phases A, B, and Z.
Resolution (pulses/rotation): 100, 200, 360, 500.
Compact Encoder with External.
Diameter of 25 mm.
Incremental model.
External diameter of 25 mm.
Resolution of up to 500 ppr.
