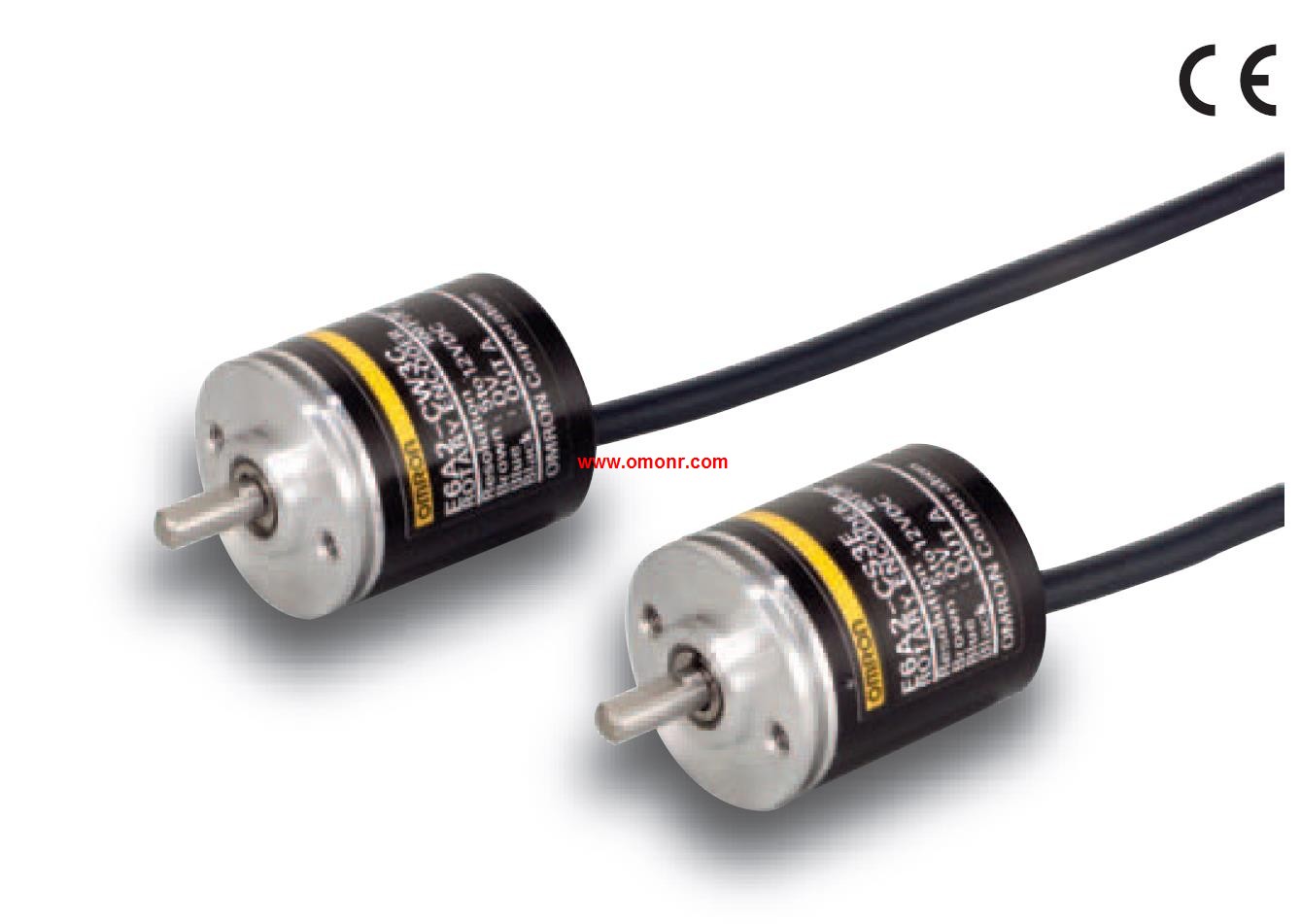

>> E6A2-CW3E | OMRON Incremental 25-mm-dia. Rotary Encoder E6A2-CW3E
E6A2-CW3E | OMRON Incremental 25-mm-dia. Rotary Encoder E6A2-CW3E
OMRON E6A2-CW3E Manual And Instructions
E6A2-CW3E datasheetPDF datasheet
E6A2-CW3E INSTRUCTION sheet
OMRON E6A2-CW3E Product information and technical parameters：
Brand: OMRON
Name: Incremental 25-mm-dia. Rotary Encoder
Model: E6A2-CW3E
Power supply voltage: 5 to 12 VDC.
Output configuration: Voltage output.
Output phases: Phases A and B.
Resolution (pulses/rotation): 100, 200, 360, 500.
Compact Encoder with External.
Diameter of 25 mm.
Incremental model.
External diameter of 25 mm.
Resolution of up to 500 ppr.
