>> E5ZN-2TPH03P-FLK | OMRON Modular Temperature Controller E5ZN-2TPH03P-FLK
E5ZN-2TPH03P-FLK | OMRON Modular Temperature Controller E5ZN-2TPH03P-FLK
OMRON E5ZN-2TPH03P-FLK Manual And Instructions
E5ZN-2TPH03P-FLK datasheetPDF datasheet
E5ZN-2TPH03P-FLK OPERATION MANUAL
E5ZN-2TPH03P-FLK INSTRUCTION Manual
OMRON E5ZN-2TPH03P-FLK Product information and technical parameters：
Brand: OMRON
Name: Modular Temperature Controller
Model: E5ZN-2TPH03P-FLK
Name: Temperature Controller (See note 1.).
Power supply: 24 VDC.
No. of control points: 2.
Control output: Transistor output.
Auxiliary output: Transistor output: 2 pts (sourcing).
Functions: Heater burnout alarm (See note 3.), Heating or heat/cool,
control is selectable (See note 4.)Event input: 1 point per Unit.
Communications functions: RS-485.
Input type (See note 5.): Platinum resistance thermometer.

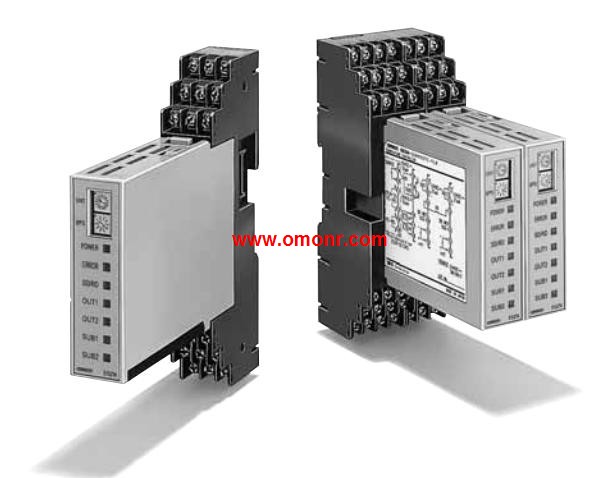

New DIN Track Mounting Temperature.
Controller.
Two channels of temperature control available despite width of,
only 22.5 mm.
The Temperature Controller itself can be replaced without,
changing terminal wiring.
Use in combination with a compact Setting Display Unit to,
reduce communications programming requirements.
Front-panel LED indicators for easy operation monitoring.
Power supply and communications wiring not required between,
Units when mounted side-by-side.
CompoWay/F communications protocol supported.
UL, CSA, and CE Marking compliance.
