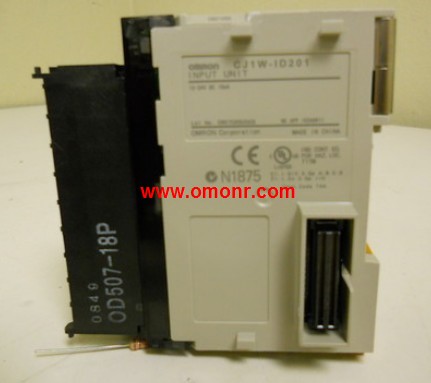

CJ1W-ID201 | OMRON CJ-series Input Units CJ1W-ID201

OMRON CJ1W-ID201 Manual And Instructions
CJ1W-ID201 datasheetPDF datasheet
CJ1W-ID201 HardwarePROGRAMMING MANUAL

OMRON CJ1W-ID201 Product information and technical parameters:
Brand: OMRON
Name: CJ-series Input Units
Model: CJ1W-ID201
Unit type: CJ1 Basic I/O Units.
Product name: DC Input Units.
Specifications: I/O points, 8 inputs;
Input voltage and current: 12 to 24 VDC, 10 mA;
Commons, Independent contacts; External connection,
Removable terminal block; No. of words allocated, 1 word.
Current consumption: 5V, 0.09A; 24V, --.
Standards: UC1, N, L, CE.
A Wide Range of Basic Input,
Units for High Speed Input and,
Different Applications.
Receive ON/OFF signals from external,
devices into the PLC System to update,
I/O memory in the CPU Unit.
New high-speed input models CJ1W-ID212 and,
CJ1W-ID233 are now available. These units can,
help to increase system throughput.

Product name: AC Power Supply Unit.
Power supply voltage: 100 to 240VAC.
Output capacity: 5-VDC output capacity, 5A;
24-VDC output capacity, 0.8A;
Total power consumption, 25w.
Options: 24-VDC service power supply, No;
RUN output, No; Maintenance forecast monitor, Yes.
Standards: UC1, N, L, CE OMRON CJ1W-ID201.
Equipped with the RUN output for,
checking the operation status,
as well as the replacement CJ1W-ID201
notification function for easy,
maintenance.
Lineup of five models including the,
AC power supply (25W).
Stable power supply is available from the,
CJ-series CPU Unit to each I/O Units via the,
dedicated bus. The most suitable Power Supply,
Unit can be selected among various I/O ,
specifications and/or options OMRON CJ1W-ID201. Product name: CJ2H (Built-in EtherNet/IP) CPU Units.
Specifications: I/O capacity/Mountable Units(Expansion Racks),
2,560 points/40 Units(3 Expansion Racks max.) ;
Program capacity, 50K steps; Data memory capacity,
160K words(DM: 32K words, EM: 32K words × 4 bank);
LD nstructio execution time, 0.016 μs.
Current consumption(A): 5V,0.82(See note.); 24v, --.
Standards: UC1, N, L, CE OMRON CJ1W-ID201.
CJ2H for high speed, high capacity.
The CJ2H Series is ideal for advanced machine.
automation needs such as those required in image.
processing inspection of electrical components and,
high speed sorting on conveyors. Unit classification: CJ1 Special I/O Units.
Product name: ProcessInput Units,
(Isolated-type Thermocouple Input Units).
Input points: 4 inputs.
Signal range selection: Common inputs.
Signal range: Thermocouple: R, S, K, J, T, L, B.
Conversion speed (resolution): Conversion,
speed: 250 ms/4 inputs.
Accuracy at ambient temperature of 25°C:
Accuracy: (±0.3% of PV or ±1°C,
whichever is larger) ±1 digit max.
External connection: Removable terminal block.
No. of unit numbers allocateed: 1 CJ1W-ID201.
Current consumption: 5V, 0.25A; 24V, --.
Standards: UC1, CE.
A Single Unit Handling All Types of Inputs,
such as Temperature Sensor Inputs and,
Analog Signal Inputs (e.g., 4 to 20 mA or 1 to 5V).
A Unit supports four inpuut channels,
each of which can be set to a
platinum resistance thermometer, thermocouple,
and DC signal (current, voltage) CJ1W-ID201.
All inputs are isolated.
