>> CJ1W-AD042 | OMRON Analog I/O Unit CJ1W-AD042

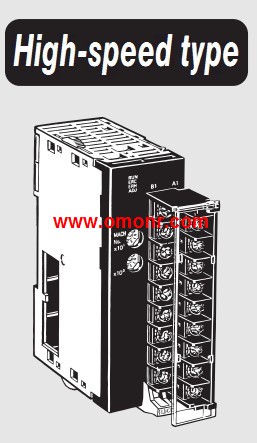

CJ1W-AD042 | OMRON Analog I/O Unit CJ1W-AD042
OMRON CJ1W-AD042 Manual And Instructions
CJ1W-AD042 datasheetPDF datasheet
CJ1W-AD042 PROGRAMMING MANUAL
CJ1W-AD042 OPERATION MANUAL
CJ1W-AD042 Instruction Manual
OMRON CJ1W-AD042 Product information and technical parameters：
Brand: OMRON
Name: Analog I/O Unit
Model: CJ1W-AD042
Unit type: CJ1 Special I/O Units.
Product name: Analog Input Unit.
I/O points: 4 inputs;
Signal range selection: Set separately for each input.
Signal range; Resolution: 1 to 5 V (1/10,000),
0 to 10 V (1/20,000), -5 to 5 V (1/20,000),
-10 to 10 V (1/40,000), and 4 to 20 mA (1/10,000).
Conversion period: 20 μs/1 point, 25 μs/2 points,
30 μs/3 points, 35 μs/4 points,
The Direct conversion is provided.
Accuracy at ambient temperature of 25°C:
Voltage: ±0.2% of F.S. Current: ±0.4% of F.S.
External connection: Removable terminal block.
No. of unit numbers allocated: 1.
Current consumption: 5V, 0.52A; 24V, --.
Standards: UC1, CE.
Consistent Microsecond Throughput:
Models with Direct Conversion Join the Lineup.
Analog Input Units for converting analog input,
signals into binary data.
Analog Output Units for converting binary ,
data into analog output signals.
...More relevant models >>>>
