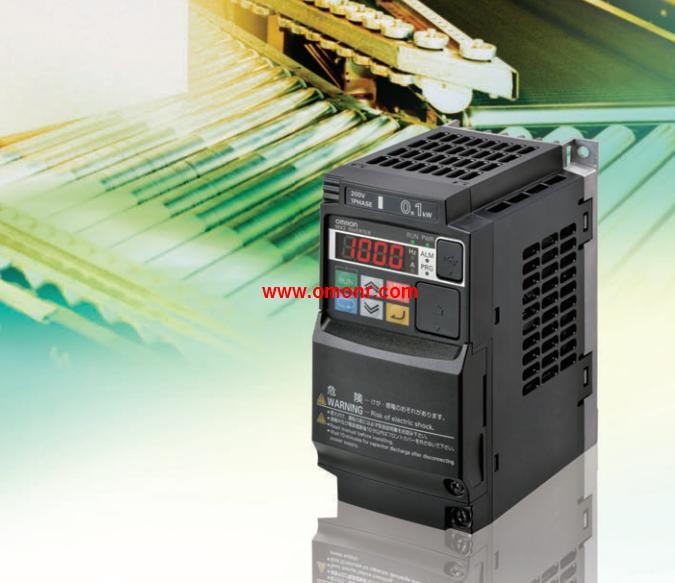

OMRON 3G3MX2-AB004-ZV1 Product information and technical parameters：
Brand: OMRON
Name: Multi function small frequency converter
Model: 3G3MX2-AB004-ZV1
Function name: single phase 200V.
Power: 0.4KW.
Rated output voltage: 3 phase, 200 ~ 240V (the output voltage can not exceed the input voltage).
Built in brake unit (brake resistance needs to be matched).
Weight: 1.1KG.
Dimension (w * h) 128mm *:68.
Outline dimension (deep):122.5mm.
Mechanical automation concept.
Positioning function.
The use of options.
(EtherCAT, CompoNet and DeviceNet) to realize the field bus communication.
Driver programming function.
Current vector control.
High starting torque: 0.5Hz up to 200%.
Safety features, in compliance with ISO13849-1:2008 EN (Cat.3/PLd) and IEC60204-1 stop level 0 standard.
Frequency output up to 580H.

Specification: single phase 200V
Power: 1.5KW.
Maximum output voltage: three phase input voltage.
Rated voltage, frequency: single phase power supply 200 ~ 50/60Hz, 240V.
Cooling: forced air cooling.
Weight: 1.9kg.
Open loop vector control mode of low speed and high torque, rich control function and convenient distribution management network function,
Set in one of the inverter --3G3MZ OMRON 3G3MX2-AB004-ZV1 3G3MX2-AB004-ZV1
3G3MZ series inverter for the application of frequency control and development.
Humanized design and advanced management technology, as well as OMRON a simple style of modeling, feature rich style,
Combined with the latest technical needs of users, so that it has a noble lineage and the most close to the market elements OMRON 3G3MX2-AB004-ZV1.
Covers the special features of the fan pump class, open loop vector function,
Built in noise filter and a variety of network bus,
3G3MZ will be your most economical and the most perfect choice. Specification: small.
Impact resistance: 120W.
Resistance to impact resistance: 35.
The use of resistance to consume the motor regenerative energy, thereby reducing the time to slow down.
Alarm output terminal of braking resistor OMRON 3G3MX2-AB004-ZV1.
When the temperature relay of the braking resistor is activated, a circuit for cutting the main power supply of the frequency converter is formed. When the power supply capacity exceeds the power supply capacity of the inverter or the need to improve the power factor, it is required to connect the AC reactor.
Please according to the maximum capacity of heavy load and light load rated conditions suitable for motor to select option. Specification: three phase 200V.
Power: 55KW.
Maximum output voltage: three phase AC200 ~ 240V (input voltage correspondence).
Rated voltage: three phase 240V ~ 50/60Hz AC200.
Weight: about 86kg.
In the inverter is equipped with the servo can play the same static torque with PG vector control function,
DeviceNet communication makes the application field more extensive.
The high ffunctional specifications are concentrated in the compact 3G3MX2-AB004-ZV1.
Equipped with PG vector control.
Subsequent models of 3G3RV.
CV/VT selection function.
Rich online automatic adjustment function (self learning function).
CX-Drive software. 3G3MX2-AB004-ZV1.
DeviceNet correspondence correspondence.
Multi function input and output function.
Colorful function.
Brake transistor built-in.
Protection function.
