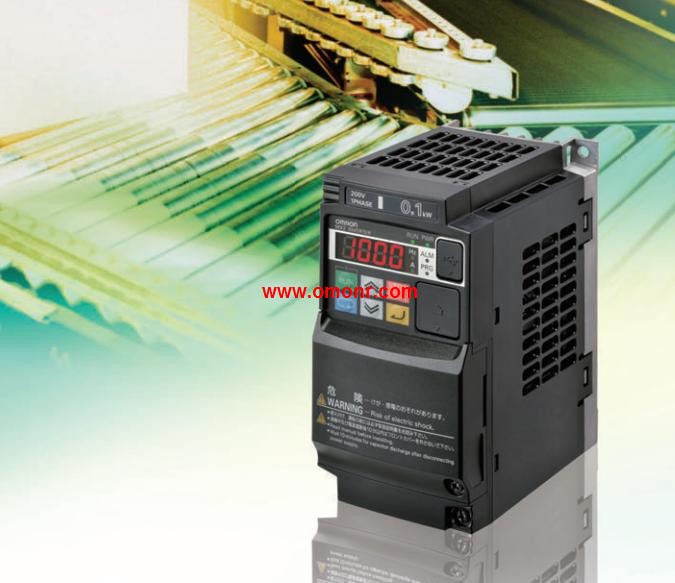

>> 3G3MX2-AB002-ZV1 | OMRON Multi function small frequency converter 3G3MX2-AB002-ZV1
3G3MX2-AB002-ZV1 | OMRON Multi function small frequency converter 3G3MX2-AB002-ZV1
OMRON 3G3MX2-AB002-ZV1 Manual And Instructions
3G3MX2-AB002-ZV1 datasheetPDF datasheet
3G3MX2-AB002-ZV1 (RS-485 Modbus Communication)EtherCAT Connection Guide
3G3MX2-AB002-ZV1 Quick Reference Guide
OMRON 3G3MX2-AB002-ZV1 Product information and technical parameters：
Brand: OMRON
Name: Multi function small frequency converter
Model: 3G3MX2-AB002-ZV1
Function name: single phase 200V.
Power: 0.2KW.
Rated output voltage: 3 phase, 200 ~ 240V (the output voltage can not exceed the input voltage).
Built in brake unit (brake resistance needs to be matched).
Weight: 1.0KG.
Dimension (w * h) 128mm *:68.
Outline dimension (deep):109mm.
Mechanical automation concept.
Positioning function.
The use of options.
(EtherCAT, CompoNet and DeviceNet) to realize the field bus communication.
Driver programming function.
Current vector control.
High starting torque: 0.5Hz up to 200%.
Safety features, in compliance with ISO13849-1:2008 EN (Cat.3/PLd) and IEC60204-1 stop level 0 standard.
Frequency output up to 580H.
