>> ZUV-L6S | OMRON Smart Curing System ZUV-L6S
ZUV-L6S | OMRON Smart Curing System ZUV-L6S
OMRON ZUV-L6S Manual And Instructions
ZUV-L6S datasheetPDF datasheet
ZUV-L6S datasheetPDF datasheet
ZUV-L6S User's Manual
ZUV-L6S USER'S MANUAL

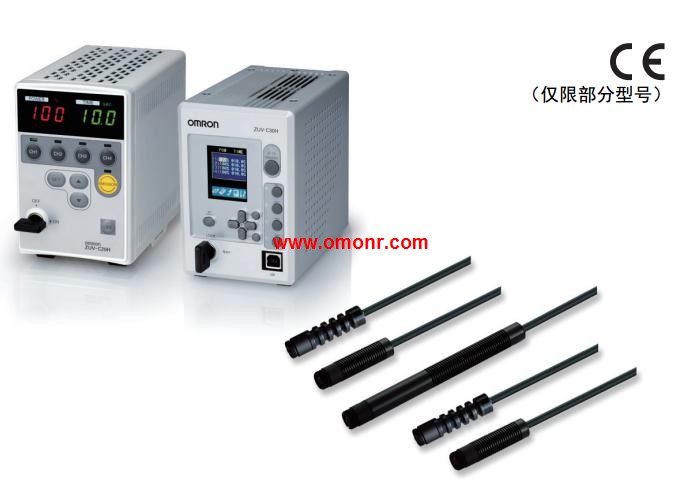

OMRON ZUV-L6S Product information and technical parameters：
Brand: OMRON
Name: Smart Curing System
Model: ZUV-L6S
Type: Side-view lens.
Spot: Spot dia.: 6 mm.
Cost Revolution Led by UV Curing.
System.
Minimal heat damage thanks to UV-LED irradiation.
New UV LEDs with much higher brightness mounted in heads.
Greater irradiation power to reduce bonding tact time.
Usage of LEDs that have a long lifetime of 40,000,
hours* drastically reduces running costs.
Ultra compact body that is approximately 1/8th the size,
of a conventional lamp system.
Equipped with a color LCD that makes settings simple and reliable.
