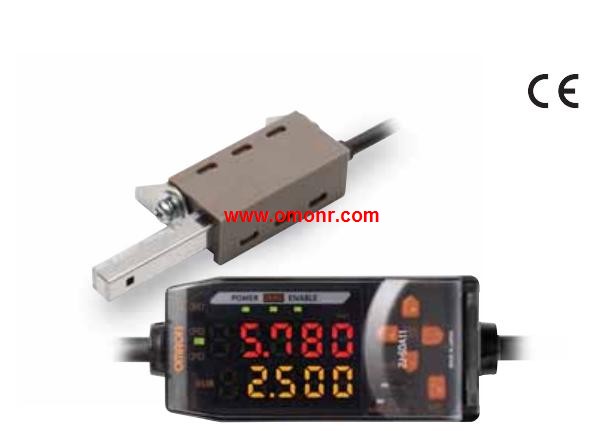

OMRON ZJ-SD100 Product information and technical parameters：
Brand: OMRON
Name: Smart Electrostatic Sensor
Model: ZJ-SD100
Sensing distance: 5 to 100 mm.
Smart Static Electricity Sensing: Making Static Electricity Visible.
Compact sensor head and smart digital amplifier measure,
the electrostatic charge quantity of workpieces at all times.
Multi-point measurements and data logging of the static,
electricity quantity can be performed easily.
Best long-distance, high-precision measurements in the industry.
