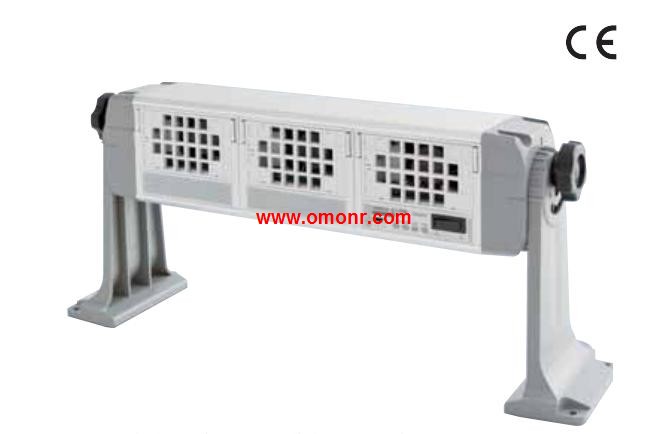

OMRON ZJ-FA20 Product information and technical parameters：
Brand: OMRON
Name: Ionizer
Model: ZJ-FA20
Power supply voltage: 24 VDC *1.
Current consumption: 900 mA max. (input from included AC adapter).
Discharge voltage: ±7 kV.
Discharge method: Variable DC.
Airflow (m3/min.): 1.4 to 2.3 m3/min (typical).
Ionization time *2: 1.2 s (0.8 s with no Filter).
Ion balance *2: ±10 V max.
Amount of generated ozone: 0.01 ppm max.
(measured at a distance of 50 mm from air outlet).
Indicators: High-voltage output lamp: ION (yellow),
Cleaning lamp: CLEANING (orange), Power lamp: POWER (green).
Main functions: Automatic ion balance adjustment, airflow adjustment,
manual ion balance adjustment.
Ambient temperature range: Operating and storage: 0 to 50°C.
(with no icing or condensation).
Ambient humidity range: Operating: 35% to 65%,
storage: 35% to 85% (with no condensation).
Weight (packed state): Approx. 2.0 kg.
Materials: Unit: ABS, Discharger: Tungsten, stand: SPCC.
Accessories: Instruction sheet, AC adapter, warning labels (2 types),
FG connection cable (2 m).
High-speed, High cost performance.
Ionization.
High-speed ionization in only 0.8 seconds.
Built-in sensor controls the ion balance at all times.
Fully open structure makes it possible to perform.
maintenance simply and safely.
Can easily be attached to aluminum profiles.
