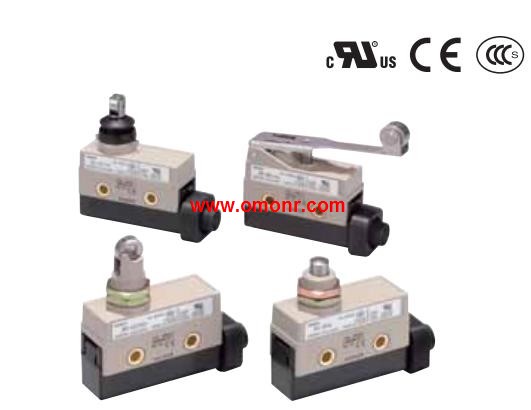

ZC-W155 | OMRON Enclosed Switch ZC-W155
OMRON ZC-W155 Manual And Instructions
ZC-W155 datasheetPDF datasheet
OMRON ZC-W155 Product information and technical parameters：
Brand: OMRON
Name: Enclosed Switch
Model: ZC-W155
Actuator: Hinge lever.
Approved Standards: UL CSA EN.
Small, High-precision Enclosed Switch.
Small, High-precision Enclosed Switches with Built-in Basic,
Switches for High Repeatability and Durability of 10 Million,
Operations Minimum.
Same mounting pitch as Z Basic Switch.
Requires less operating force than conventional limit switches.
Lineup includes modes with operation indicators for easy,
maintenance and inspection.
Approved by EN, UL, CSA, and CCC (Chinese standard).
(Ask your OMRON representative for Information on approved models.).
