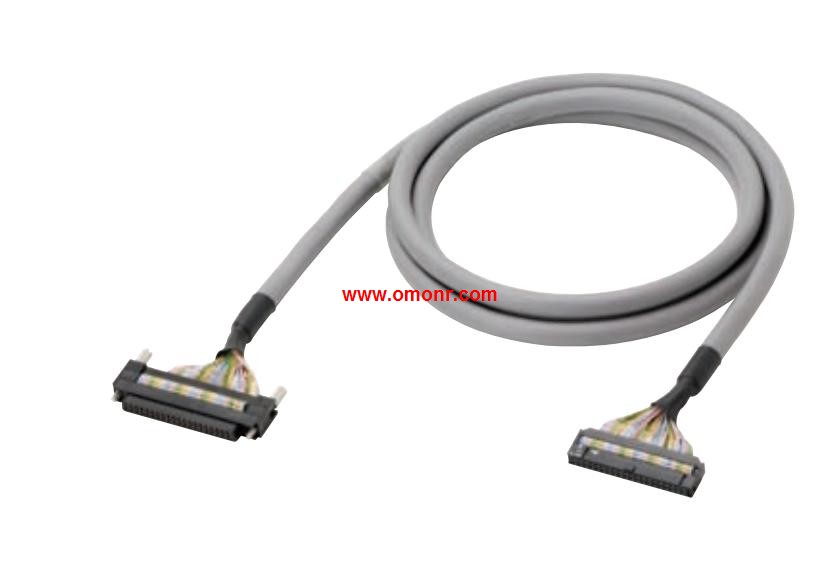

OMRON XW2Z-20MB Product information and technical parameters：
Brand: OMRON
Name: Connecting Cables for Connector-Terminal Block Conversion Units
Model: XW2Z-20MB
Type: Normal wiring.
Cable length L: 20.0 m.
Connect Connector-Terminal,
Block Conversion Units (XW2@) to,
I/O Units for Programmable,
Controllers with one touch.
...More relevant models >>>>
