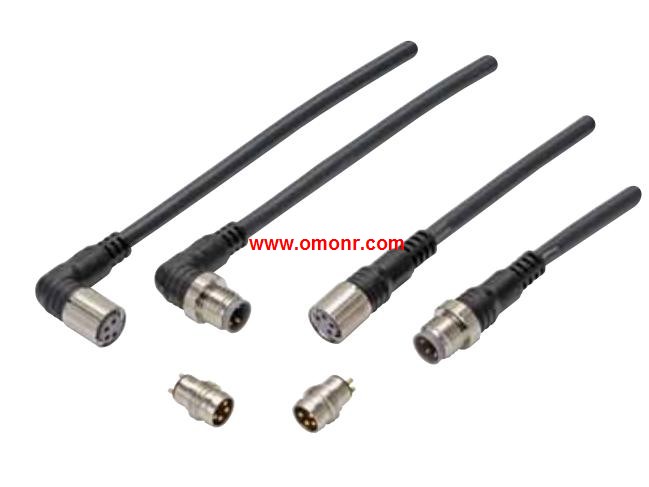

OMRON XS3W-M422-405-R Product information and technical parameters：
Brand: OMRON
Name: Round Water-resistant Connectors
Model: XS3W-M422-405-R
No. of cable cores: 4.
Cable connection direction: Right-angle/Right-angle.
Cable length L: 5 m.
Small Round Water-resistive.
Connectors.
Water-resistive, compact connector meets IP67 requirements.
Conventional M8 screw-mounting models are available along with,
S8 snap-in models that connect and disconnect with one touch.
Ideal for a wide variety of FA and OA applications.
Connectors on both cable ends require no harness work.
Some new M8 models with 3 or 5 poles.
...More relevant models >>>>
