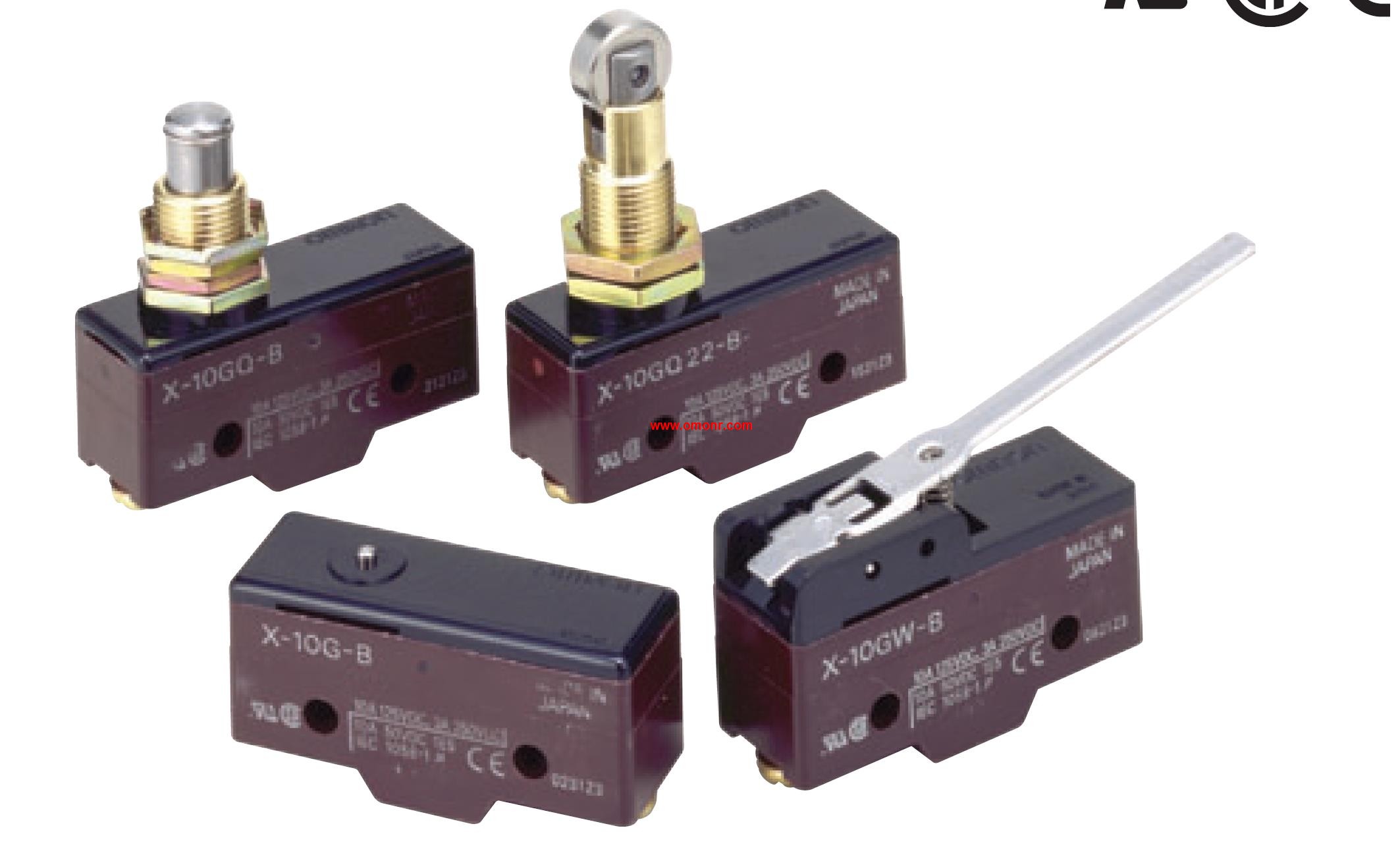

X-10GW-B | OMRON General-purpose Basic Switch X-10GW-B
OMRON X-10GW-B Manual And Instructions
X-10GW-B datasheetPDF datasheet
OMRON X-10GW-B Product information and technical parameters：
Brand: OMRON
Name: General-purpose Basic Switch
Model: X-10GW-B
Terminal: Screw terminal (-B).
Actuator: Hinge lever.
Direct Current Switch with.
Built-in Magnetic Blowout.
Incorporates a small permanent magnet in the contact.
mechanism to deflect the arc to effectively extinguish it.
Same shape and mounting procedures as the Z Basic Switches.
