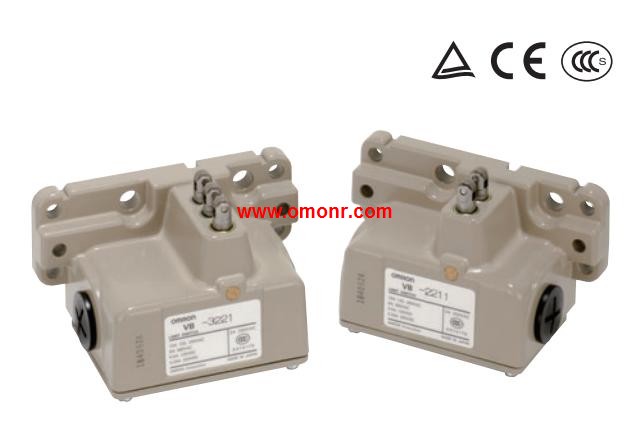

OMRON VB-5221 Product information and technical parameters：
Brand: OMRON
Name: Multiple Limit Switch
Model: VB-5221
Shape of box: With flange.
Actuator: Roller plunger (with a 6.8-dia. roller).
Conduit: Four.
A New Monoblock Multiple Limit Switch.
Incorporating a Head Box with a Tough.
Head and Ensuring High Sealing.
Performance and a Mechanical.
Durability of 5,000,000 Operations.
Used for the sequential control of a variety of engineering.
machines and belt conveyor lines.
Built-in oil filter shuts out oil and water.
Approved by EN, IEC (Ground terminal models only.) and,
CCC (Chinese standard). Ask your OMRON representative,
for information on approved models.
Ground terminal models bear the CE mark.
...More relevant models >>>>
