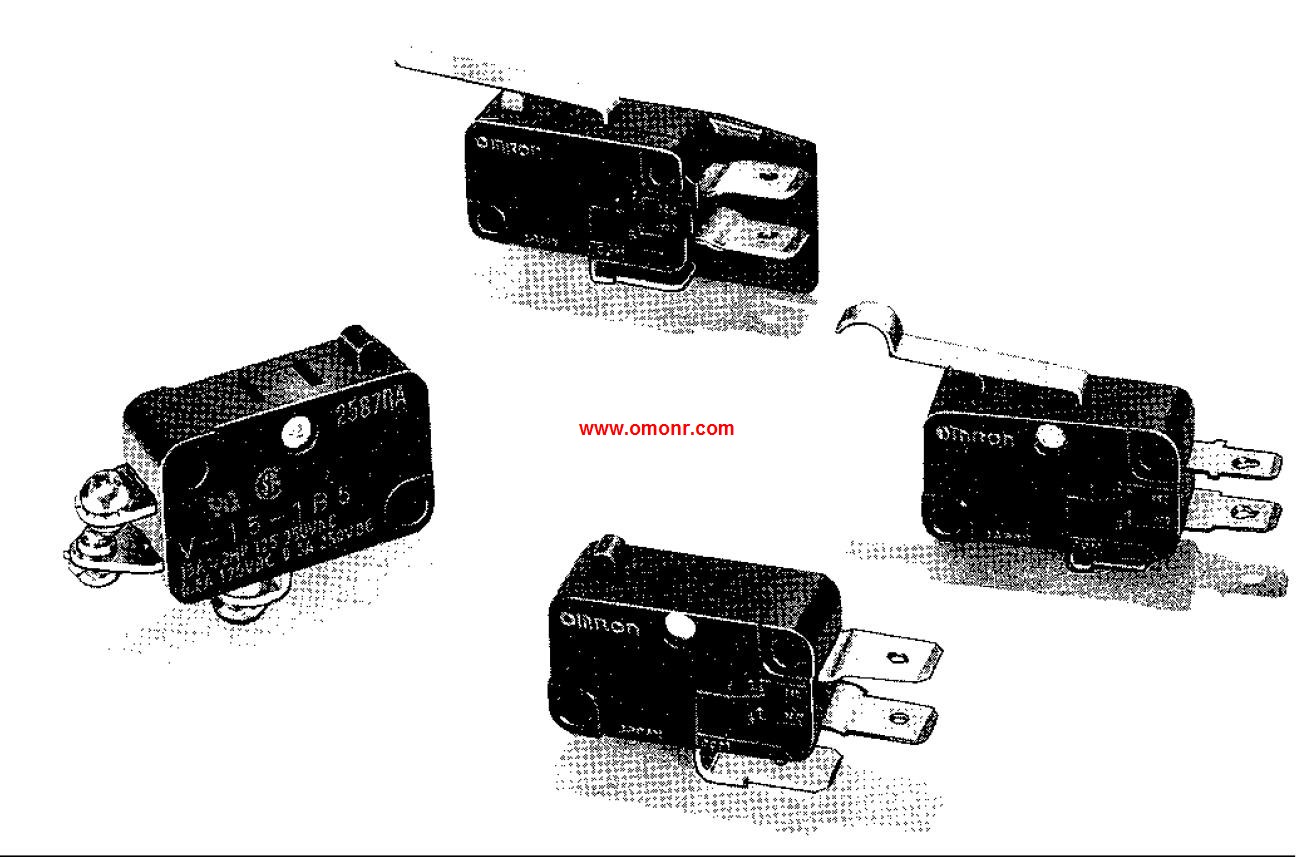

OMRON V Series Product information and technical parameters：
Brand: OMRON
Name: Miniature Basic Switch
Model: V Series
Miniature Basic Switch that,
Offers High Reliability and.
Security.
Wide variation of best-selling microswitches with,
switching currents of 10 to 21 A.
Can be used for interrupting current when doors,
are opened or closed.
Available in two types of cases: thermoplastic resin,
and thermosetting resin.
...More relevant models >>>>
