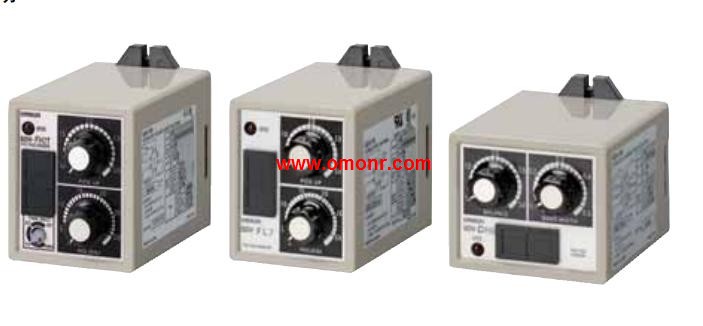

SDV-FH6 | OMRON Voltage Sensor SDV-FH6
OMRON SDV-FH6 Manual And Instructions
SDV-FH6 datasheetPDF datasheet
SDV-FH6 User's Manual
OMRON SDV-FH6 Product information and technical parameters：
Brand: OMRON
Name: Voltage Sensor
Model: SDV-FH6
Control power supply voltage: 100/110 VAC.
Input: DC, Input voltage range, 10 to 300 V.
Overvoltage/Undervoltage Monitoring.
Relay for AC and DC Input.
Detect overvoltages or undervoltages (switch select,
able) from 4 mV to 300 V.
Detect undercurrent, reverse current, or overcurrent in,
DC circuits using shunt (SDV-FL).
Detect three-phase AC current for under and/or overcur,
rent using current converter.
Available in 7 supply voltage configurations.
Single-function model with ON-delay, OFF-delay, or star,
tup lock settings (SDV-FH@T).
Select either AC or DC voltage input.
Polarity can be specified (SDV-FL) to enable easy re,
verse current detection.
Selectable reset value range from 2% to 30% of operat,
ing value (SDV-F).
LED operation indicator.
UL/CSA approval (SDV-F@).
