>> S8VS-09024 | OMRON Switch Mode Power Supply S8VS-09024
S8VS-09024 | OMRON Switch Mode Power Supply S8VS-09024
OMRON S8VS-09024 Manual And Instructions
S8VS-09024 datasheetPDF datasheet
S8VS-09024 Installation and Operating Manual
S8VS-09024 Installation and Operating Manual

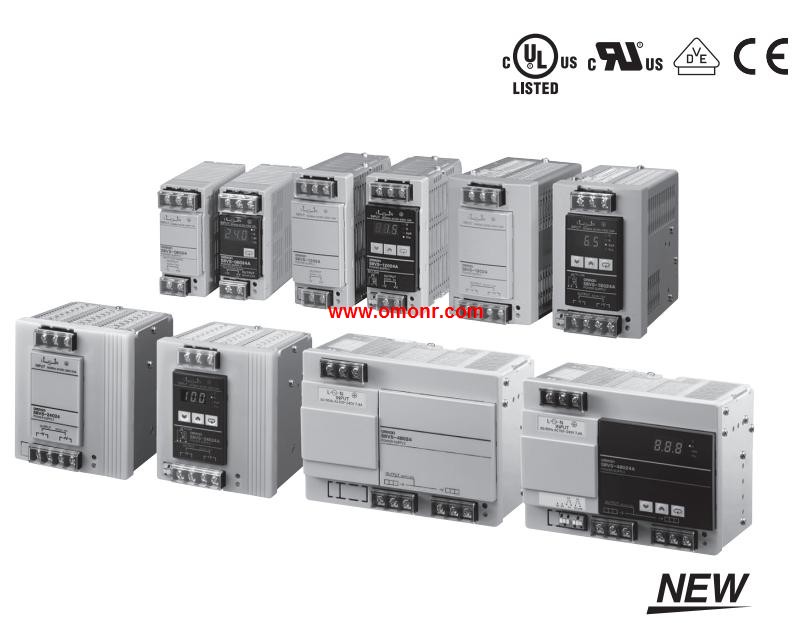

OMRON S8VS-09024 Product information and technical parameters：
Brand: OMRON
Name: Switch Mode Power Supply
Model: S8VS-09024
Power ratings: 90 W.
Input voltage: 100 to 240 VAC(allowable range: 85 to 264 VAC or 80 to 370 VDC*3).
Output voltage: 24 V.
Output current: 3.75 A.
UL Class 2 Output standards: --.
Model number(screw terminal block).
60/90/120/180/240/480-W Models.
New Models with Indication.
Monitor and Simple Functions for.
Easy System Commissioning.
New 90-W models with indication monitor that.
conform to UL Class 2 Output standards.
New models with screwless terminal blocks and,
indication monitor.
Status displayed on 3-digit, 7-segment display.
Safety standards: UL 508/60950-1,
CSA C22.2 No. 107.1/60950-1,
EN 50178 (= VDE 0160), EN 60950-1 (= VDE 0805 Teil 1).
Input conditions: DC input is also possible from 80 to 370 VDC.
(Not compliant with EC Directives and other safety standards.)
