>> S8JX-G03524D | OMRON Switch Mode Power Supply S8JX-G03524D

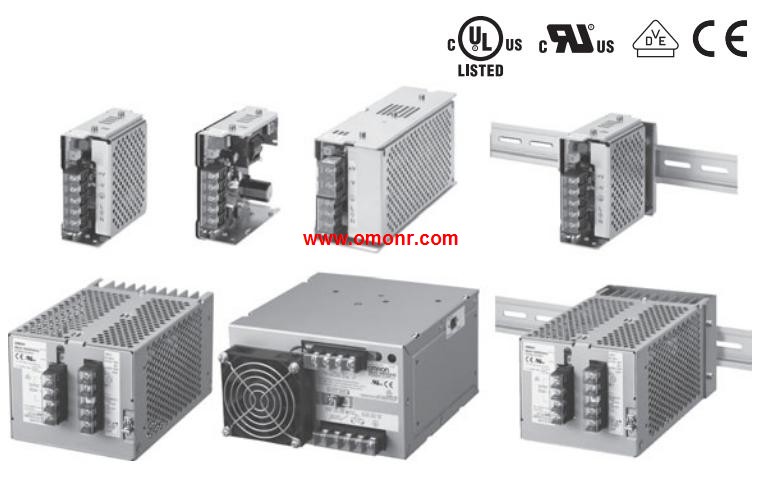

S8JX-G03524D | OMRON Switch Mode Power Supply S8JX-G03524D
OMRON S8JX-G03524D Manual And Instructions
S8JX-G03524D datasheetPDF datasheet
S8JX-G03524D Connection Guide
OMRON S8JX-G03524D Product information and technical parameters：
Brand: OMRON
Name: Switch Mode Power Supply
Model: S8JX-G03524D
Configuration: Covered Power Supplies.
Input voltage: 100 to 240 VAC (free) (80 to 370 VDC *).
S8JX-G15005@@:Switchable between 100 to 120 VAC and 200 to 240 VAC.
(DC power cannot be input.).
Power ratings: 35 W.
Output voltage: 24 V.
Output current: 1.5 A.
Built-in fan: No.
Easy-to-use, Widely range from 15 W to 600 W (Output Voltage: 5 V to 48 V).
Easy Mounting: Front-mounted type, DIN rail-mounted type are available.
Screw-mount at the top. (except 300-/600-W models).
Safety standards: UL 508/60950-1, cUL CSA C22.2 No. 107.1,
cUR CSA C22.2 No. 60950-1.
EN 50178 (= VDE 0160) Over voltage.
category III.
EN 60950-1 (= VDE 0805 Teil 1).
EMC: Conforms to EN 61204-3.
(EMI:EN55011 ClassA).
Input conditions: The input voltage range of 15-W, 35-W,
50-W, 100-W, and 150-W models has,
been increased to 80 to 370 VDC (EC Directives and safety standards do not apply.).
...More relevant models >>>>
