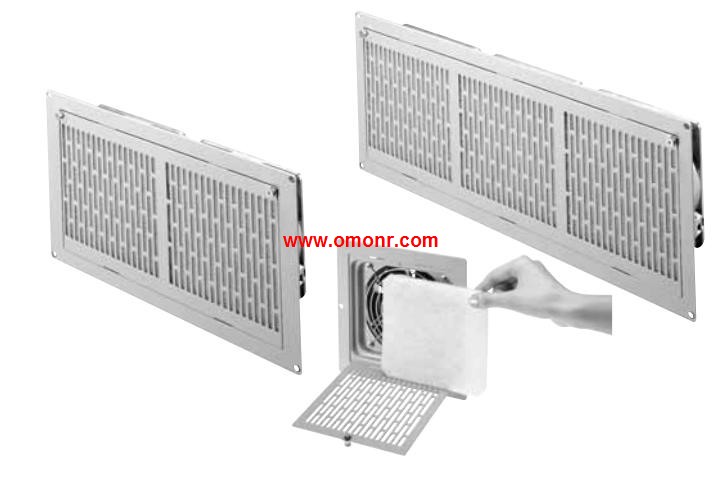

R87B-TA3A15MPF | OMRON Box Fan R87B-TA3A15MPF
OMRON R87B-TA3A15MPF Manual And Instructions
R87B-TA3A15MPF datasheetPDF datasheet
R87B-TA3A15MPF Connection Guide
OMRON R87B-TA3A15MPF Product information and technical parameters：
Brand: OMRON
Name: Box Fan
Model: R87B-TA3A15MPF
Rated voltage: 115 V.
Permitted voltage fluctuation range: 85% to 110% rated voltage.
Frequency: 50/60 Hz.
Rated rotational speed: 50 Hz, 2300 r/min; 60 Hz, 2600 r/min.
Maximum flow rate: 50 Hz, 0.8 m3/min; 60 Hz, 1.0 m3/min.
Maximum static pressure: 50 Hz, 41 Pa; 60 Hz, 45 Pa.
Noise: 50 Hz, 41 dB; 60 Hz, 44 dB.
Weight: Approx. 1150 g.
