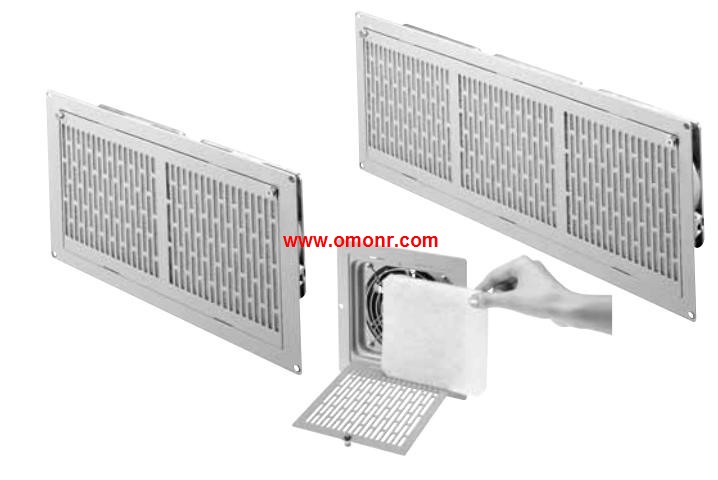

R87B-FA4A15HPF | OMRON Box Fan R87B-FA4A15HPF
OMRON R87B-FA4A15HPF Manual And Instructions
R87B-FA4A15HPF datasheetPDF datasheet
R87B-FA4A15HPF Connection Guide
OMRON R87B-FA4A15HPF Product information and technical parameters：
Brand: OMRON
Name: Box Fan
Model: R87B-FA4A15HPF
Rated voltage: 200 V.
Permitted voltage fluctuation range: 85% to 110% rated voltage.
Frequency: 50/60 Hz.
Rated rotational speed: 50 Hz, 2,700 r/min; 60 Hz, 3,100 r/min.
Maximum flow rate: 50 Hz, 1.3 m3/min; 60 Hz, 1.5 m3/min.
Maximum static pressure: 50 Hz, 91 Pa; 60 Hz, 85 Pa.
Noise: 50 Hz, 49 dB; 60 Hz, 52 dB.
Weight: Approx. 1,120 g.
