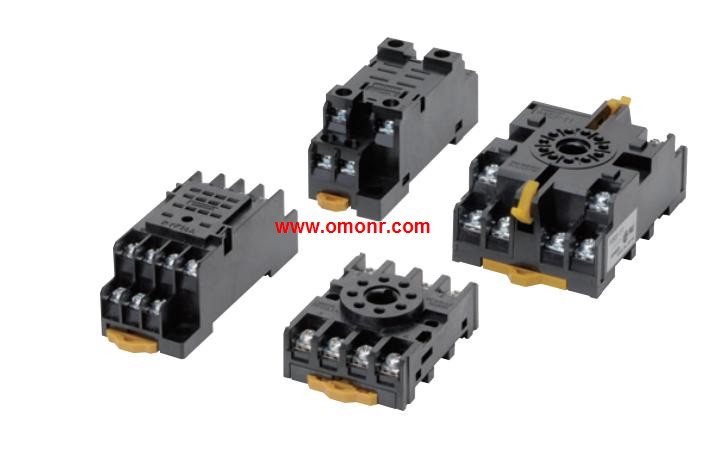

OMRON PYD-025B Product information and technical parameters：
Brand: OMRON
Name: Products Related to Common Sockets and DIN Tracks
Model: PYD-025B
Pitch: 22 mm.
Applicable models: PYF08A.
Specifications: Max. carry current: 20 A (18 A at 70°C),
Ambient operating temperature: -40 to 70°C (with nocing or condensation),
Ambient operating humidity: 45% to 85% (with nocing or condensation),
Conductor material: Brass.
Conductor surface treatment: Nickel plating.
Package qty: 10/bag.
A Wide Variety of Square and,
Round Sockets in Front-mounting,
and Back-mounting Models,
Models available with finger protection.
Hold-down Clips and Socket Bridges for PYF Sockets,
are also available.
New screwless models available.
