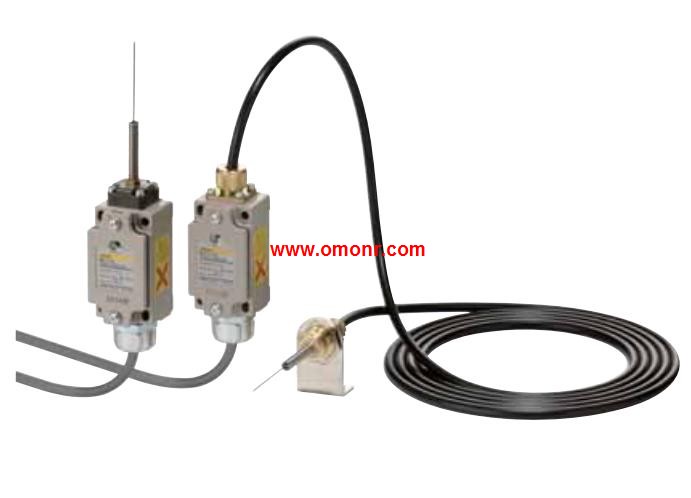

NL2-SC | OMRON Limit Touch Switch NL2-SC
OMRON NL2-SC Manual And Instructions
NL2-SC datasheetPDF datasheet
OMRON NL2-SC Product information and technical parameters：
Brand: OMRON
Name: Limit Touch Switch
Model: NL2-SC
Model: Separate antenna model.
Features: Antenna with 3-m extension cable is available for narrow,
spaces where conventional limit switches cannot be used.
Antenna: Coil spring with antenna.
Series: NL2.
Power supply voltage: 24 VDC.
Object Actuates Switch and Turns.
Built-in Monitor Indicator ON.
Instantaneous operation upon contact with extremely.
limited hysteresis for high-precision position detection.
Detects minute displacement or lightweight objects with.
minimal operating force.
Built-in LED indicator ensures easy operation monitoring.
DC models provide versatile functions in combination.
with the S3D2 Sensor Controller.
...More relevant models >>>>
NL2-SC datasheetPDF datasheet
