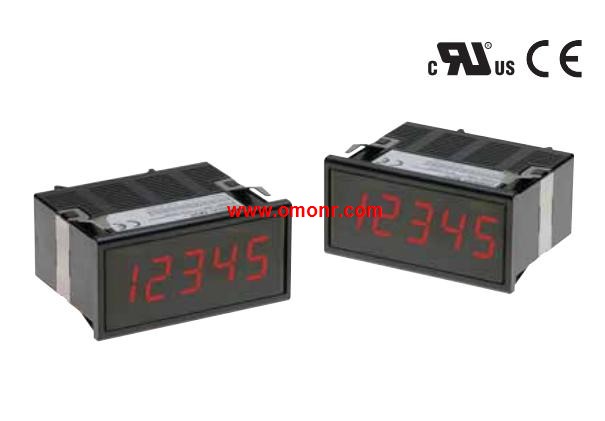

>> M7F-4P1G | OMRON Digital Display M7F-4P1G
M7F-4P1G | OMRON Digital Display M7F-4P1G
OMRON M7F-4P1G Manual And Instructions
M7F-4P1G datasheetPDF datasheet
OMRON M7F-4P1G Product information and technical parameters：
Brand: OMRON
Name: Digital Display
Model: M7F-4P1G
No. of digits: 4.
Display color: Green.
Input method: Static.
Logic: Positive.
Display contents: Numerals only.
A Series of Three- to Five-digit Digital.
Display Units with a Character Height of,
14 mm. Models available with either red or,
green displays.
Red or green displays with a character height of 14 mm are,
available for a variety of applications and locations.
Miniature design with a 50-mm depth.
Incorporating a connector, thus saving wiring effort.
Connecting to OMRON''s PLCs via dedicated PLC cables (sold separately).
Units and minus symbols are displayed (three- and four-digit model only).
Incorporating a zero suppression function.
The power supply can freely change between 12 and 24 VDC.
CE Marking. UL certification approval.
