OMRON M7E Series Product information and technical parameters：
Brand: OMRON
Name: Mother Board for Display Units
Model: M7E Series
Compact (Two-, Three-, or Four-digit) S2-series,
Added to Static Mother Board.
Models.

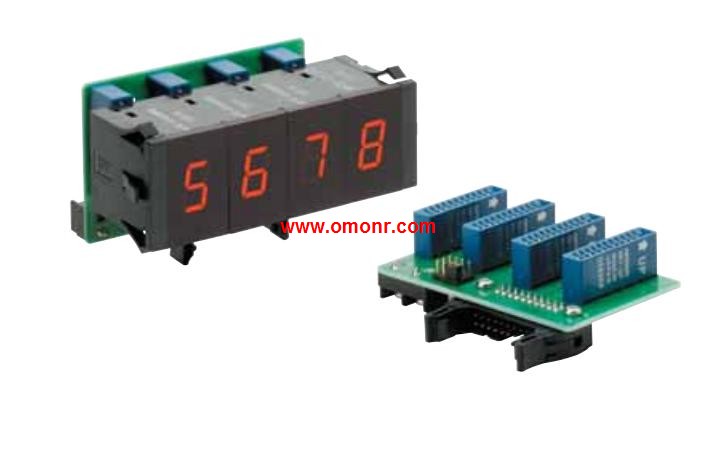

Easily connect a M7E Digital Display without soldering.
Two-, three- and four-digit Mother Boards are available for,
connecting M7E Digital Displays and, by using two Mother,
Boards, two- to eight-digit displays are possible.
The depth of the Mother Board with M7E Digital Display,
Units is only 58 mm, ideal for mounting to compact or thin control panels.
Connecting to OMRON''s PLCs via dedicated PLC cables,
(sold separately) (refer to M7E Options).
