>> M7E-20DGN1 | OMRON Digital Display M7E-20DGN1

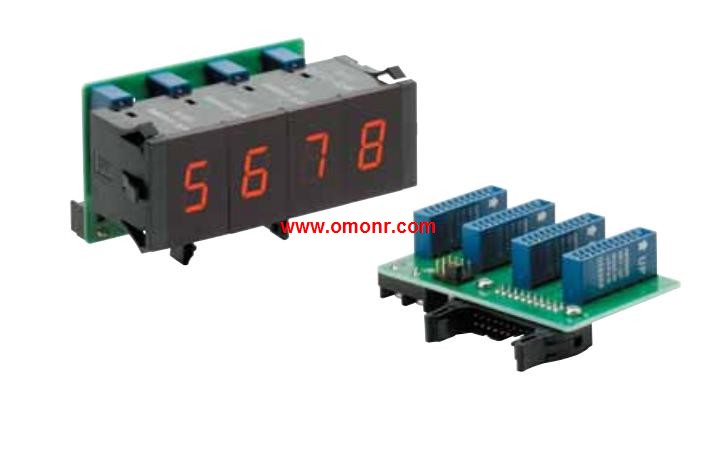

M7E-20DGN1 | OMRON Digital Display M7E-20DGN1
OMRON M7E-20DGN1 Manual And Instructions
M7E-20DGN1 datasheetPDF datasheet
M7E-20DGN1 datasheetPDF datasheet
OMRON M7E-20DGN1 Product information and technical parameters：
Brand: OMRON
Name: Digital Display
Model: M7E-20DGN1
Display contents: Decimal.
Type: Rear mounting.
Logic input: Negative.
Display color: Green.
Digital Display with Wire-saving Serial.
Transmission Function (B7A Output).
Single-color (red or green) and three-color (red, green, or,
orange selectable) displays with a character height of 80, 120,
or 200 mm are available for a variety of applications and locations.
Thin design with a 39.5-mm depth for the 120-mm model is,
perfect for saving space in equipment and devices.
Decimal display including negative sign (−) display with signal,
codes is possible.
