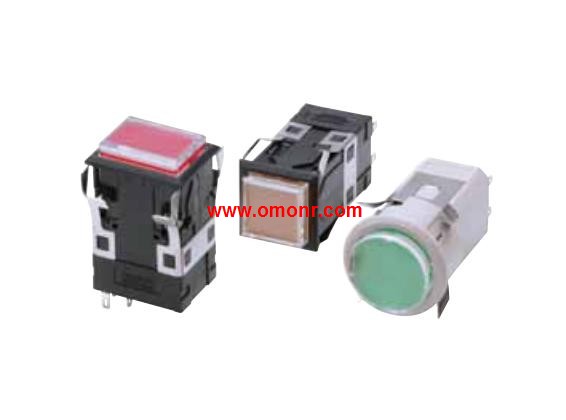

>> M2PJ-90A12-14 | OMRON Indicator M2PJ-90A12-14
M2PJ-90A12-14 | OMRON Indicator M2PJ-90A12-14
OMRON M2PJ-90A12-14 Manual And Instructions
M2PJ-90A12-14 datasheetPDF datasheet
OMRON M2PJ-90A12-14 Product information and technical parameters：
Brand: OMRON
Name: Indicator
Model: M2PJ-90A12-14
Case color: Light gray.
Lighting method: Incandescent lamp; 14 VDC/VAC.
Display color symbol: R.O.G.W.
Large Rectangular-bodied Indicators.
Excellent illumination with even surface brightness.
Three-color models (green, orange, red; chameleon lighting),
included in lineup.
