>> M2BJ-BH06D | OMRON Buzzer M2BJ-BH06D

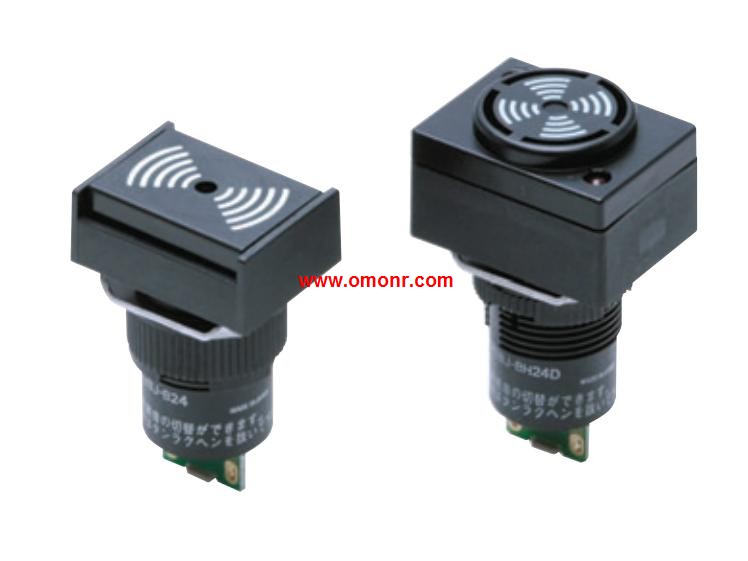

M2BJ-BH06D | OMRON Buzzer M2BJ-BH06D
OMRON M2BJ-BH06D Manual And Instructions
M2BJ-BH06D datasheetPDF datasheet
OMRON M2BJ-BH06D Product information and technical parameters：
Brand: OMRON
Name: Buzzer
Model: M2BJ-BH06D
Appearance: High sound.
w/jumper direction A *2: Intermittent (high-pitched).
w/jumper direction B *2(w/o jumper): Continuous.
Supply voltage: 6 VAC/VDC.
Buzzer Unit Series with Cylindrical.
22-mm × 16-dia. Body.
Lineup includes standard-volume models (80 phons, constant) and,
high-volume models (70 to 95 phons, variable). Intermittent or,
continuous sound can be selected.
