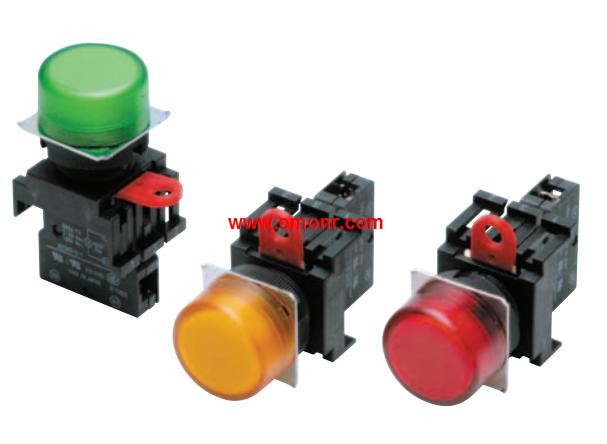

>> M22-FA-T1 | OMRON Indicator M22-FA-T1
M22-FA-T1 | OMRON Indicator M22-FA-T1
OMRON M22-FA-T1 Manual And Instructions
M22-FA-T1 datasheetPDF datasheet
OMRON M22-FA-T1 Product information and technical parameters：
Brand: OMRON
Name: Indicator
Model: M22-FA-T1
Appearance: Round/Flat with Voltage Reduction Unit M22-F.
Lighting: LED.
Operating voltage: 100 VAC.
Illumination color: R (red); Y (yellow); G (green); W (white); A (blue).
Round Indicator Series with 22 dia. and.
25 dia. (when using a ring).
Same type as the A22-series Pushbutton Switches.
Use 25-dia. ring to install in 25-dia. panel cutouts.
IP65.
