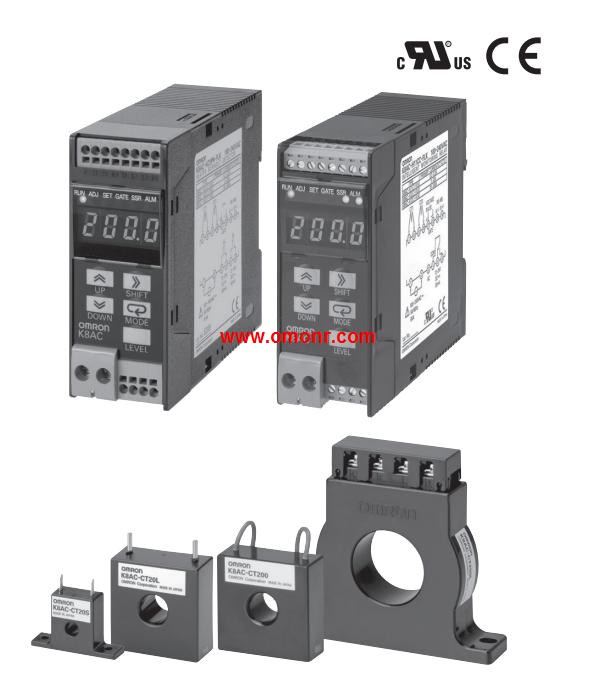

>> K8AC-H22CC-FLK | OMRON Digital Heater Element Burnout Detector K8AC-H22CC-FLK
K8AC-H22CC-FLK | OMRON Digital Heater Element Burnout Detector K8AC-H22CC-FLK
OMRON K8AC-H22CC-FLK Manual And Instructions
K8AC-H22CC-FLK datasheetPDF datasheet
K8AC-H22CC-FLK Communications Manual
OMRON K8AC-H22CC-FLK Product information and technical parameters：
Brand: OMRON
Name: Digital Heater Element Burnout Detector
Model: K8AC-H22CC-FLK
Power supply voltage: 100 to 240 VAC.
Heater control method: ON/OFF control SSR control.
Input specifications: Two current inputs,
(for either single phase or threephase).
Output specifications: One relay output.
Communications output: RS-485.
Current input range: 2.00 to 22.00 A.
A high-precision Heater Element.
Burnout Detector compatible with a,
wide-range of heater control methods.
Push-in terminals reduce the workload.
Scaling.
NPN or PNP equivalent output.
Lineup includes models compatible with many heater control methods,
including ON/OFF control, phase control, and cyclic control.
High-precision heater burnout alarm with digital measurement.
Contributes to preventative maintenance.
If the gate function is disabled, the gate input can be used as an,
undercurrent/overcurrent relay or for motor or lamp loads.
Undercurrent detection values can be set separately for CT1 and CT2.
CE marking and cUL certified (K8AC-H2@@@).
